8216 010100 Cable, Coax, RG174/U, Black, 30.5m Belden

BELDENSKU:8216 010100 Bestelcode:1467102

Prijs:
Actie prijs€126,29

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (20 units)

Documenten en downloads

Omschrijving

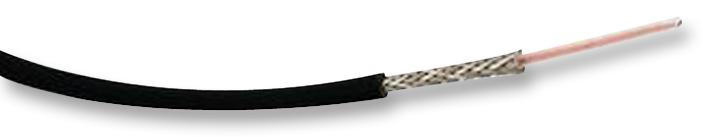

BELDEN - 8216 010100 - Coaxial Cable, RG174, 26 AWG, 50 ohm, 100 ft, 30.5 m

  • Coaxial Cable Type: RG174
  • Wire Gauge: 26AWG
  • Conductor Area CSA: -
  • Impedance: 50ohm
  • Reel Length (Imperial): 100ft
  • Reel Length (Metric): 30.5m
  • Jacket Colour: Black
  • Jacket Material: PVC
  • Conductor Material: Copper Coated Steel
  • No. of Max Strands x Strand Size: 7 x 0.16mm
  • External Diameter: 2.794mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Attenuation @ 100MHz: 27.6dB
  • Attenuation @ 10MHz: 10.8dB
  • Attenuation @ 1GHz: 111.5dB
  • Attenuation @ 1MHz: 6.2dB
  • Attenuation @ 200MHz: 41dB
  • Attenuation @ 400MHz: 62.3dB
  • Attenuation @ 50MHz: 19dB
  • Attenuation @ 900MHz: 101.7dB
  • Conductor Make-up: 7 / 34
  • Core - Core Capacitance: 101pF/m
  • Core Diameter: 1.52mm
  • Flammability Rating: UL1354
  • Operating Temperature Max: 75°C
  • Operating Temperature Min: -40°C
  • Outer Diameter: 2.79mm
  • Secondary Insulation Colour: Black
  • Secondary Insulation Material: PVC
  • Velocity of Propagation (%): 66%
  • Wire Size: 26AWG
