82MCX-S50-0-22/111NE RF COAXIAL, MCX, STRAIGHT JACK, 50OHM HUBER+SUHNER
Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
82MCX-S50-0-22/111NE RF COAXIAL, MCX, STRAIGHT JACK, 50OHM HUBER+SUHNER

82MCX-S50-0-22/111NE RF Coaxial, MCX, Straight Jack, 50ohm Huber+SUHNER

HUBER+SUHNERSKU:82MCX-S50-0-22/111NE Bestelcode:8558280
Prijs:
€19,29

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

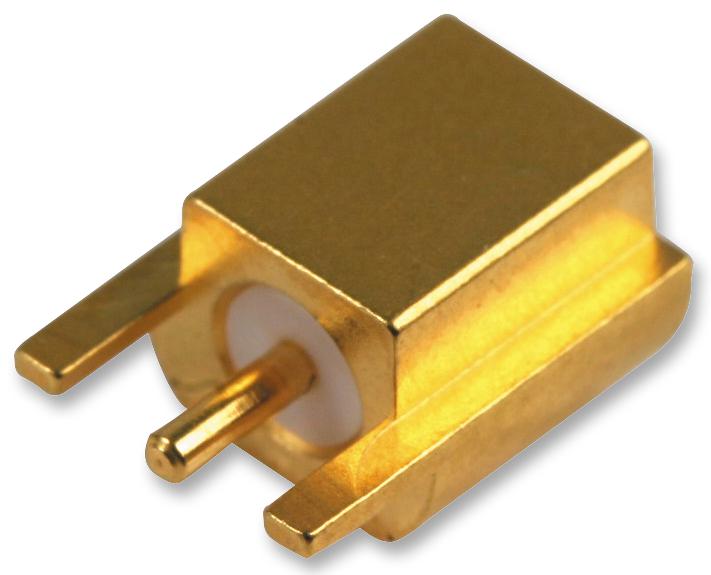

HUBER+SUHNER - 82"MCX-S50-0-22/111"NE - RF / Coaxial Connector, MCX Coaxial, Straight Jack, Solder, 50 ohm, Beryllium Copper

  • Connector Type: MCX Coaxial
  • Connector Body Style: Straight Jack
  • Coaxial Termination: Solder
  • Impedance: 50ohm
  • Coaxial Cable Types: -
  • Contact Material: Beryllium Copper
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 6GHz
  • Connector Mounting: PCB Mount
  • Product Range: -
  • SVHC: No SVHC (17-Dec-2015)
  • Body Plating: Sucopro, Sucoplate
  • Connector Mounting Orientation: PCB
  • Dielectric Material: PTFE/PFA
  • Material: Brass
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 6GHz
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
