RF/Coaxial
82MMBX-50-0-2/111NE RF COAXIAL, MMBX, STRAIGHT JACK, 50OHM HUBER+SUHNER
Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
82MMBX-50-0-2/111NE RF COAXIAL, MMBX, STRAIGHT JACK, 50OHM HUBER+SUHNER

82MMBX-50-0-2/111NE RF Coaxial, MMBX, Straight Jack, 50ohm Huber+SUHNER

HUBER+SUHNERSKU:82MMBX-50-0-2/111NE Bestelcode:8558400
Prijs:
€26,72

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

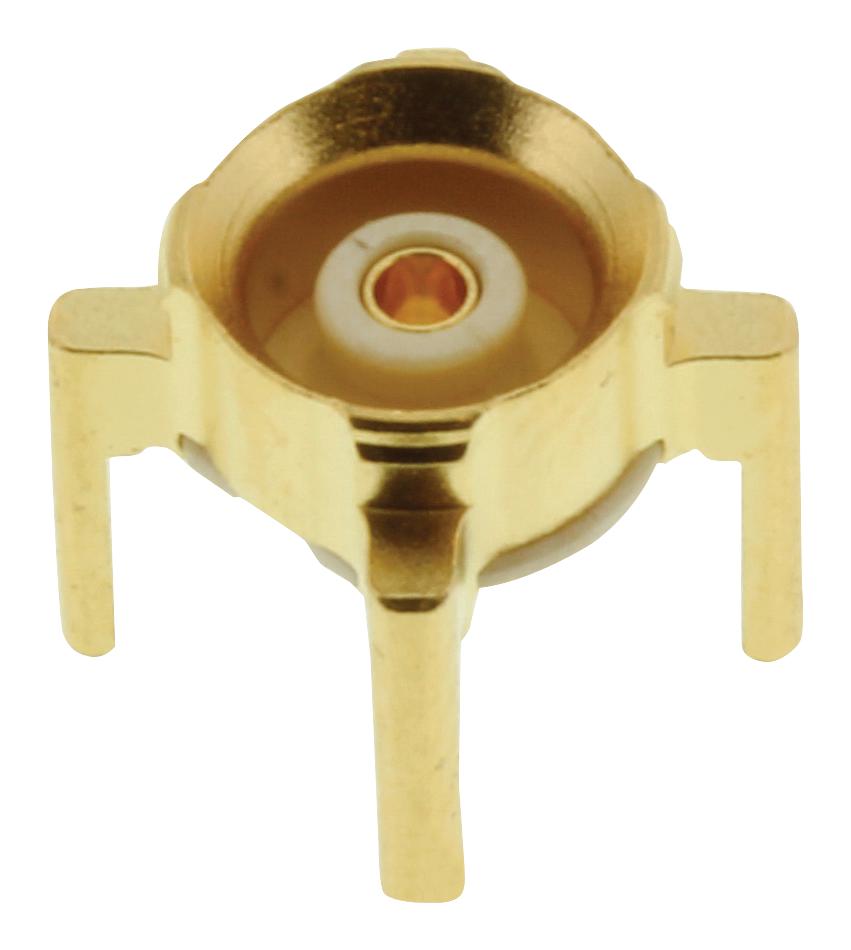

HUBER+SUHNER - 82"MMBX-50-0-2/111"NE - RF / Coaxial Connector, MMBX Coaxial, Straight Jack, Solder, 50 ohm, Beryllium Copper

  • Connector Type: MMBX Coaxial
  • Connector Body Style: Straight Jack
  • Coaxial Termination: Solder
  • Impedance: 50ohm
  • Coaxial Cable Types: -
  • Contact Material: Beryllium Copper
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 12.4GHz
  • Connector Mounting: PCB Mount
  • Product Range: MMBX Series
  • SVHC: No SVHC (17-Dec-2015)
  • Body Plating: Sucopro
  • Connector Mounting Orientation: PC Board
  • Material: Brass
  • No. of Mating Cycles: 100
  • Operating Frequency Max: 12.4GHz
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Termination Method: Solder
