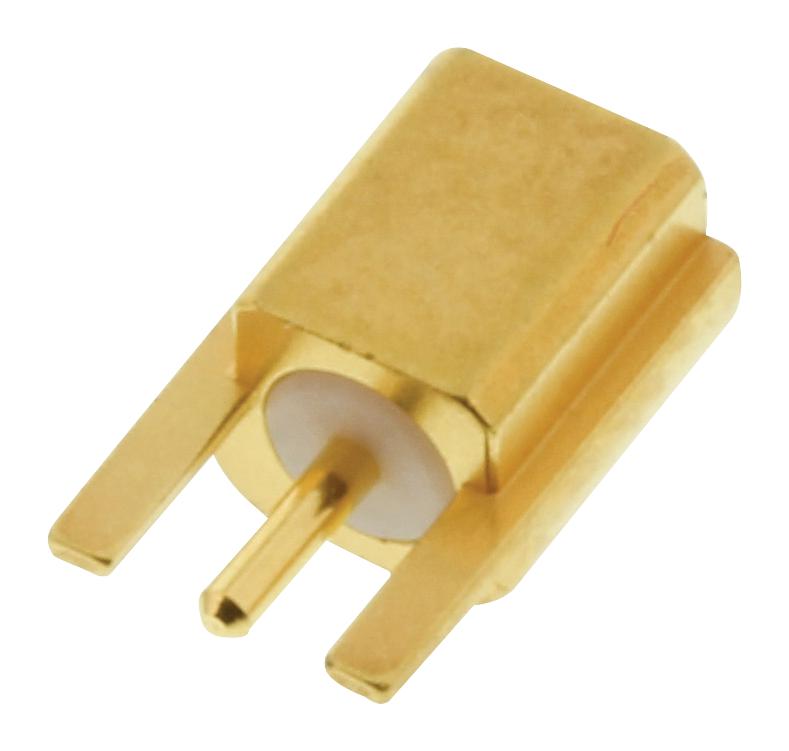

82MMCX-S50-0-2/111KE RF Coaxial, MMCX, Straight Jack, 50ohm Huber+SUHNER

HUBER+SUHNERSKU:82MMCX-S50-0-2/111KE Bestelcode:8558485

Prijs:
Actie prijs€17,20

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 2 producten leverbaar

Documenten en downloads

Omschrijving

HUBER+SUHNER - 82"MMCX-S50-0-2/111"KE - RF / Coaxial Connector, MMCX Coaxial, Straight Jack, Solder, 50 ohm, Beryllium Copper

  • Connector Type: MMCX Coaxial
  • Connector Body Style: Straight Jack
  • Coaxial Termination: Solder
  • Impedance: 50ohm
  • Coaxial Cable Types: -
  • Contact Material: Beryllium Copper
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 6GHz
  • Connector Mounting: PCB Mount
  • Product Range: -
  • SVHC: No SVHC (17-Dec-2015)
  • Body Plating: Gold
  • Centre Contact Resistance: 15mohm
  • Connector Mounting Orientation: PCB
  • Dielectric Material: PTFE
  • Insulation Resistance: 1000Mohm
  • Material: Brass
  • Operating Frequency Max: 6GHz
  • Outer Contact Resistance: 7.5mohm
  • Termination Method: Solder
  • VSWR: 1.10
