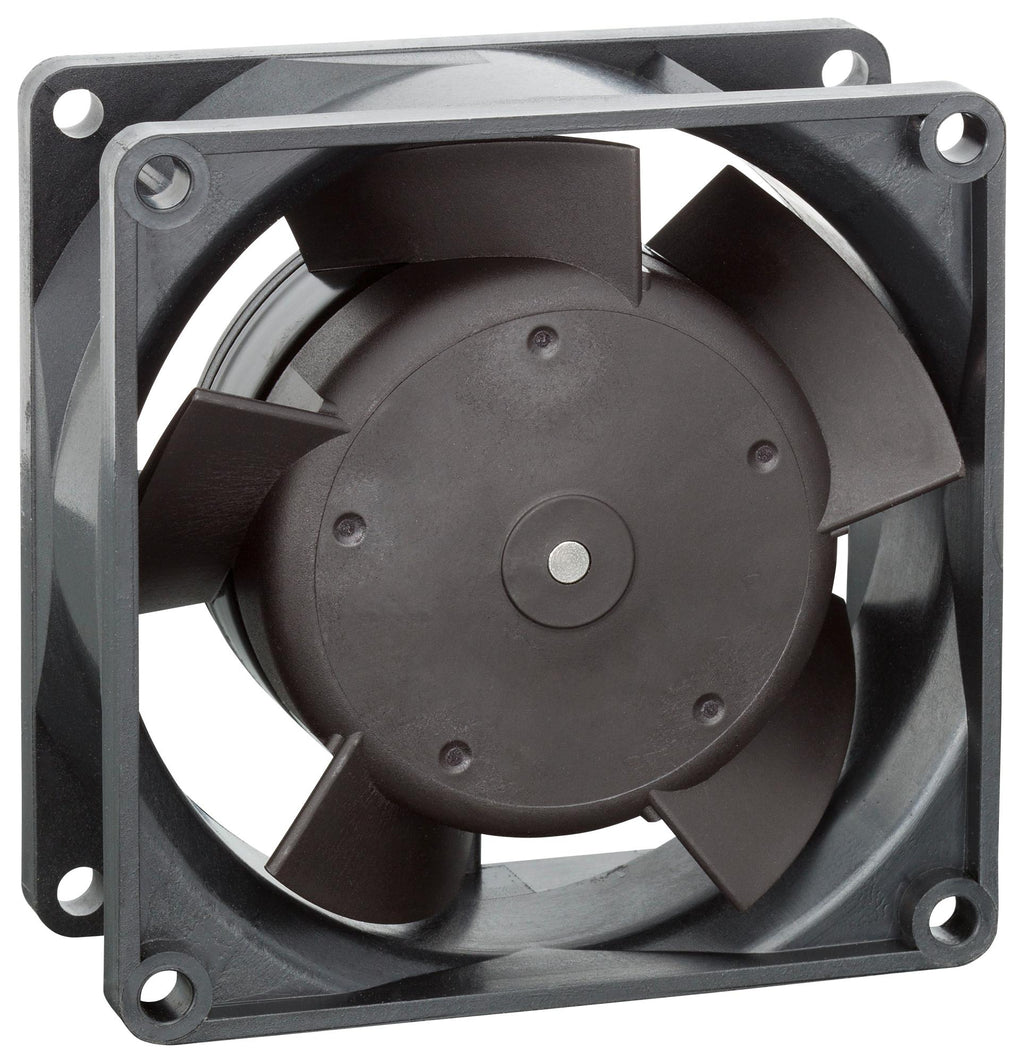

EBM-PAPST - 8314H - DC Axial Fan, 24 V, Square, 80 mm, 32 mm, Ball Bearing, 47.1 CFM
- Supply Voltage: 24V
- Current Type: DC
- Fan Frame Size: 80mm
- External Depth: 32mm
- Noise Rating: 48dBA
- Flow Rate - Imperial: 47.1cu.ft/min
- Flow Rate - Metric: 80m³/h
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: -
- Product Range: 8300 Series
- Power Rating: 6W
- IP Rating: IP54, IP68
- SVHC: No SVHC (15-Jan-2019)
- External Diameter: 80mm
- External Height: 80mm
- External Width: 80mm
- Frame Dimensions: 80mm x 80mm x 32mm
- Lead Length: 310mm
- Operating Temperature Max: 75°C
- Operating Temperature Min: -20°C
- Power Consumption: 6W
- Speed Range Max: 5000rpm
- Supply Voltage DC Max: 26.5VDC
- Supply Voltage DC Min: 12VDC
