83265 Cable, Coax, RG178B/U, White, Per M Belden

BELDENSKU:83265 Bestelcode:2819552

Prijs:
Actie prijs€19,58

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (5 units)

Omschrijving

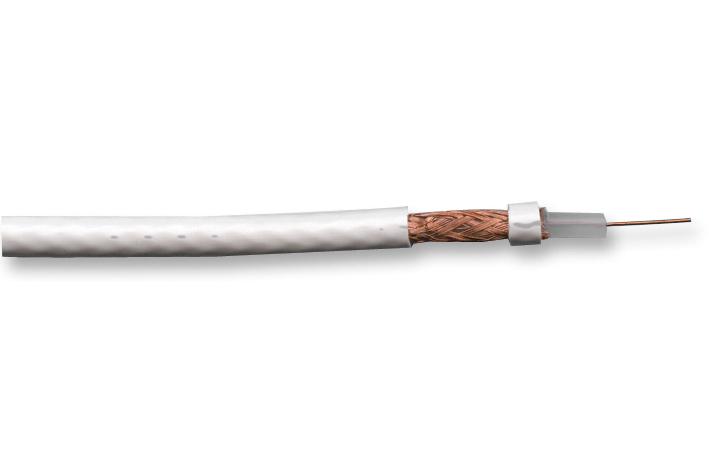

BELDEN - 83265 - Coaxial Cable, Per Metre, High Temperature, MIL-C-17, RG178B, 30 AWG, 50 ohm

  • Coaxial Cable Type: RG178B
  • Wire Gauge: 30AWG
  • Conductor Area CSA: -
  • Impedance: 50ohm
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: White
  • Jacket Material: FEP
  • Conductor Material: SPCCS (Silver Plated Copper Coated Steel)
  • No. of Max Strands x Strand Size: 7 x 38AWG
  • External Diameter: 1.8mm
  • Product Range: 83265 Coax
  • SVHC: No SVHC (15-Jan-2018)
  • Attenuation @ 100MHz: 45.9dB
  • Attenuation @ 10MHz: 18.4dB
  • Attenuation @ 1GHz: 150.9dB
  • Attenuation @ 1MHz: 8.5dB
  • Attenuation @ 200MHz: 62.3dB
  • Attenuation @ 400MHz: 91.9dB
  • Attenuation @ 50MHz: 34.5dB
  • Conductor Make-up: 7 / 38
  • Core Diameter: 0.84mm
  • Core-Screen Capacitance: 95.1pF/m
  • Operating Temperature Max: 200°C
  • Operating Temperature Min: -70°C
  • Outer Diameter: 1.8mm
  • Secondary Insulation Material: FEP
  • Velocity of Propagation (%): 69.5%
