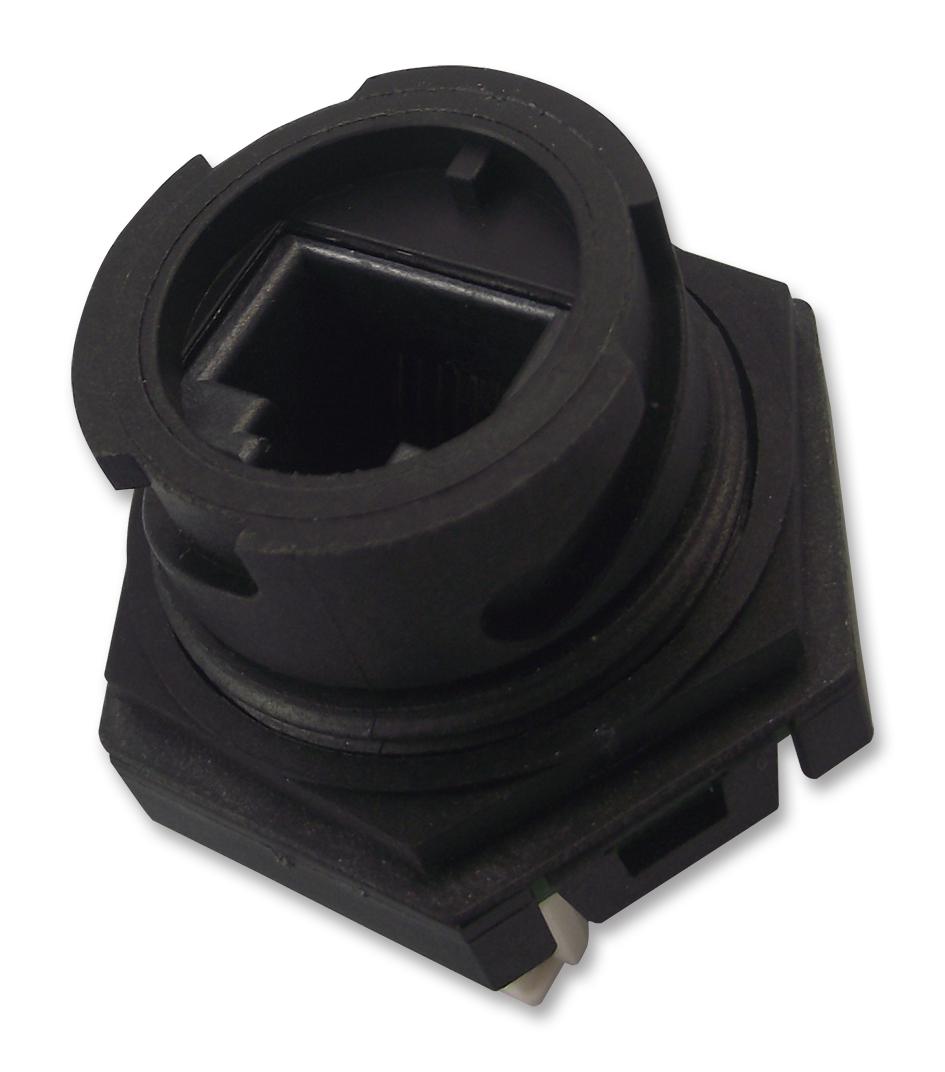

MOLEX - 84702-0006 - Modular Connector, BRAD, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat5e, IP67, Panel Mount
- Modular Connector Type: RJ45 Jack
- Port Configuration: 1 x 1 Port
- No. of Positions / Loaded Contacts (per Port): 8P8C
- LAN Category: Cat5e
- IP Rating: IP67
- Connector Mounting: Panel Mount
- Connector Orientation: Vertical
- Shielding: Shielded
- Magnetics: Without Magnetics
- LEDs: Without LED
- Light Pipes: Without Light Pipe
- Product Range: 84702 Series
- Colour: Black
- Connector Type: RJ45
- Contact Gender: Socket
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated Contacts
- Contact Termination: Feed Through
- Contact Termination Type: Press Fit
- Flammability Rating: UL94V-0
- Gender: Receptacle
- IP / NEMA Rating: IP67
- Material: PBT Polyester
- No. of Contacts: 8Contacts
- No. of Contacts: 8 Contact
- No. of Mating Cycles: 500
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 125V
- Withstand Voltage: 1000V
