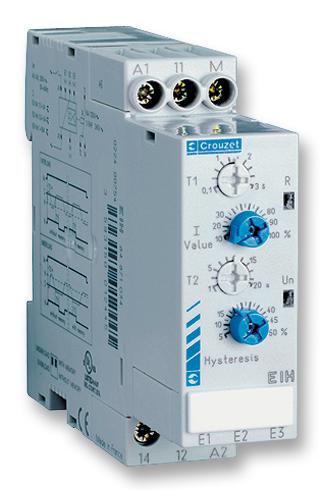

84871034 Relay, Current Sensing, SPDT, 10A CROUZET

CROUZETSKU:84871034 Bestelcode:4270927

Prijs:
Actie prijs€372,45

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (38 units)

Documenten en downloads

Omschrijving

CROUZET - 84871034 - Current Monitoring Relay, EI, SPDT, 8 A, DIN Rail, Screw

  • Product Range: EI Series
  • Contact Configuration: SPDT
  • Contact Current: 8A
  • Relay Mounting: DIN Rail
  • Contact Voltage VAC: -
  • Relay Terminals: Screw
  • Contact Voltage VDC: -
  • Supply Voltage Max: 230VAC
  • Current Monitoring Range Min: 100mA
  • Current Monitoring Range Max: 10A
  • Power Consumption: 3VA
  • SVHC: No SVHC (15-Jun-2015)
  • Coil Voltage VAC Nom: 230V
  • Contact Current AC Max: 8A
  • External Depth: 100mm
  • External Length / Height: 99.3mm
  • External Width: 22.5mm
  • Load Current: 0.1A
  • Nom Input Voltage: 230VDC
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -20°C
  • Supply Current Max: 8A
  • Supply Voltage: 230V
  • Switch Current Max: 10A
  • Switching Current Max: 10A
