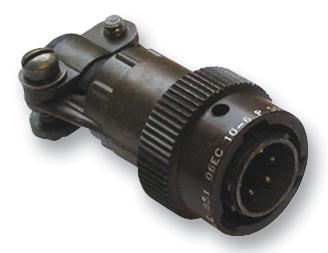

SOURIAU-SUNBANK / EATON - 85106EC1210P50 - Circular Connector, Souriau 851, Cable Mount Plug, 10 Contacts, Solder Pin, Bayonet, 12-10
- Product Range: 851 Series
- Circular Connector Shell Style: Cable Mount Plug
- No. of Contacts: 10Contacts
- Circular Contact Type: Solder Pin
- Coupling Style: Bayonet
- Insert Arrangement: 12-10
- Connector Body Material: Aluminium Alloy Body
- Connector Body Plating: Olive Green Cadmium
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Insert Rotation: N
- Service Class: Environmentally Sealed
- Equivalent Military Specification: MIL-DTL-26482 Series I
- SVHC: Cadmium (15-Jan-2019)
- Connector Insert Type: 12-10
- Connector Mounting: Cable Mount
- Connector Shell Size: 12
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 5ohm
- Contact Termination: Solder
- Contact Termination Type: Solder
- Gender: Plug
- Insulation Resistance: 5000ohm
- Male Contact Material: Copper Alloy
- Male Contact Plating: pre tininng or gold
- No. of Mating Cycles: 500
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
