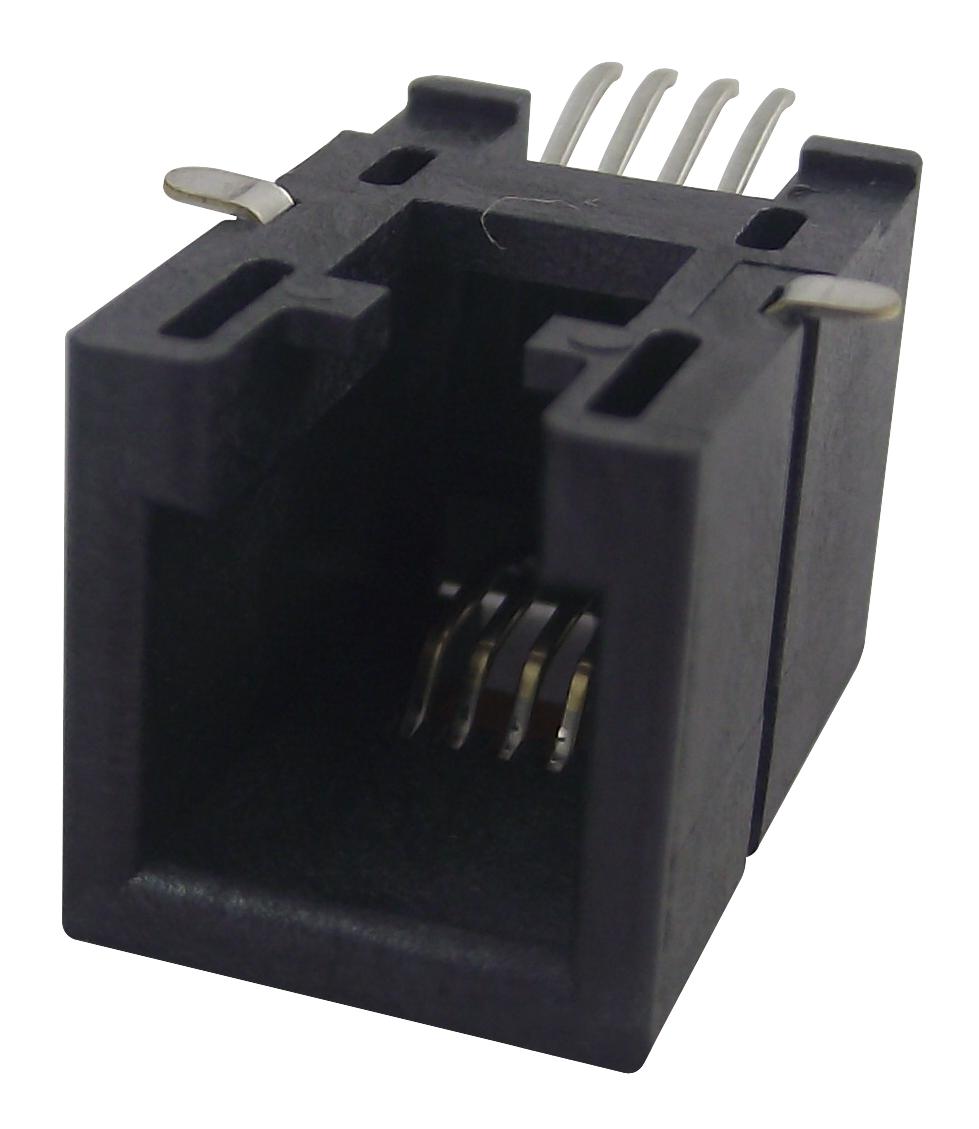

85502-5005 Modular, Jack, SMT, R/A, RJ11, 4P4C Molex

MOLEXSKU:85502-5005 Bestelcode:1388978

Prijs:
Actie prijs€3,89

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (120 units)

Omschrijving

MOLEX - 85502-5005 - Modular Connector, Modular Jack, 1 x 1 (Port), 4P4C, Cat3, Surface Mount

  • Modular Connector Type: Modular Jack
  • Port Configuration: 1 x 1 Port
  • No. of Positions / Loaded Contacts (per Port): 4P4C
  • LAN Category: Cat3
  • IP Rating: -
  • Connector Mounting: Surface Mount
  • Connector Orientation: Right Angle
  • Shielding: Unshielded
  • Magnetics: Without Magnetics
  • LEDs: Without LED
  • Light Pipes: Without Light Pipe
  • Product Range: 85502 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Category: UL 94V-0
  • Body Plating: Gold
  • Connector Type: Modular
  • Contact Material: Phosphor Bronze
  • Contact Plating: Gold Plated Contacts
  • Contact Resistance: 20mohm
  • Contact Termination: Surface Mount Right Angle
  • Contact Termination Type: Surface Mount
  • Current Rating: 1.5A
  • External Depth: 11.5mm
  • External Length / Height: 11.5mm
  • External Width: 11.8mm
  • Flammability Rating: UL94V-0
  • Gender: Jack
  • Insulation Resistance: 500Mohm
  • No. of Contacts: 4Contacts
  • No. of Ports: 1Ports
  • No. of Positions: 4Ways
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
  • Voltage Rating VAC: 125V
