85502-5008 Modular, Jack, SMT, R/A, RJ45, 8P8C Molex

MOLEXSKU:85502-5008 Bestelcode:1331561

Prijs:
Actie prijs€3,36

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (692 units)

Omschrijving

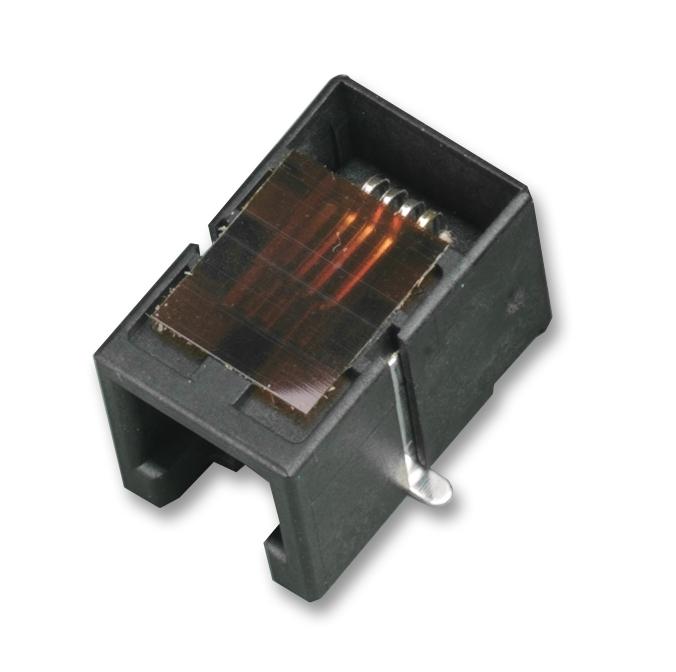

MOLEX - 85502-5008 - Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat3, Surface Mount

  • Modular Connector Type: RJ45 Jack
  • Port Configuration: 1 x 1 Port
  • No. of Positions / Loaded Contacts (per Port): 8P8C
  • LAN Category: Cat3
  • IP Rating: -
  • Connector Mounting: Surface Mount
  • Connector Orientation: Right Angle
  • Shielding: Unshielded
  • Magnetics: Without Magnetics
  • LEDs: Without LED
  • Light Pipes: Without Light Pipe
  • Product Range: 85502 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Category: UL 94V-0
  • Colour: Black
  • Connector Type: RJ45
  • Contact Material: Copper
  • Contact Plating: Gold Plated Contacts
  • Contact Resistance: 20mohm
  • Contact Termination: Surface Mount Right Angle
  • Contact Termination Type: Surface Mount
  • Current Rating: 1.5A
  • External Depth: 18.1mm
  • External Length / Height: 11.5mm
  • External Width: 15.24mm
  • Flammability Rating: UL94V-0
  • Gender: Jack
  • Insulation Resistance: 500Mohm
  • Material: Liquid Crystal Polymer
  • No. of Contacts: 8Contacts
  • No. of Ports: 1Ports
  • No. of Positions: 8Ways
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
  • Voltage Rating VAC: 125V
