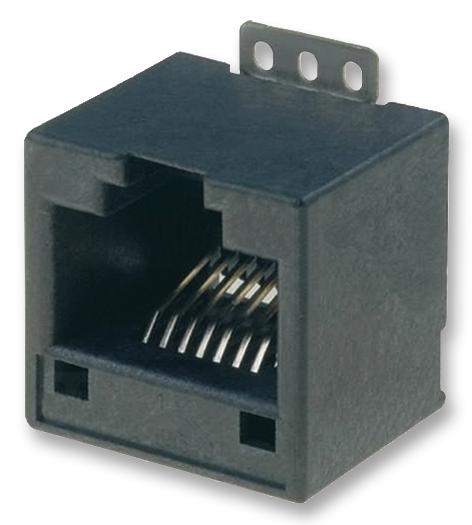

MOLEX - 85513-5013 - Modular Connector, Cat3
- LAN Category: Cat3
- Product Range: 85513 Series
- SVHC: No SVHC (15-Jan-2019)
- Approval Category: UL 94V-0
- Body Plating: Gold
- Colour: Black
- Connector Type: RJ45
- Contact Material: Copper
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 20mohm
- Contact Termination: Surface Mount Vertical
- Contact Termination Type: Surface Mount
- Current Rating: 1.5A
- External Depth: 18.8mm
- External Length / Height: 13mm
- External Width: 15.9mm
- Flammability Rating: UL94V-0
- Gender: Jack
- Insulation Resistance: 500Mohm
- Material: Glass Filled LCP
- No. of Contacts: 8Contacts
- No. of Ports: 1Ports
- No. of Positions: 8Ways
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 125V
