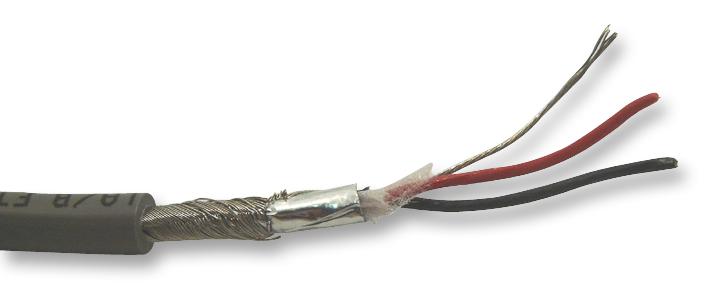

ALPHA WIRE - 86002CY - Multicore Cable, Xtra-Guard® Flex, Per Metre, Screened, 2 Core, 28 AWG, 0.9 mm²
- Cable Shielding: Screened
- No. of Cores: 2Core
- Wire Gauge: 28AWG
- Conductor Area CSA: 0.9mm²
- Reel Length (Imperial): -
- Reel Length (Metric): -
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 7 x 0.13mm
- Conductor Material: Copper
- Jacket Material: PVC
- External Diameter: 4.4mm
- Voltage Rating: 300V
- Product Range: Xtra-Guard®
- SVHC: No SVHC (15-Jan-2019)
- Bend Flexing Radius Min: 8 X Cable Diameter
- Cable Type: Foil + Spiral Shield
- Conductor Make-up: 7 / 0.13mm
- External Length / Height: 1m
- Operating Temperature Max: 105°C
- Operating Temperature Min: 5°C
- Outer Diameter: 4.4mm
- Primary Insulation Thickness: 0.25mm
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
- Secondary Insulation Thickness: 1mm
- Voltage Rating VAC: 300V
- Wire Size: 28AWG
