86004CY DATA CABLE 28AWG, SCRN 4CORE, PER M ALPHA WIRE

ALPHA WIRESKU:86004CY Bestelcode:1515261

Prijs:
Actie prijs€12,85

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (37 units)

Documenten en downloads

Omschrijving

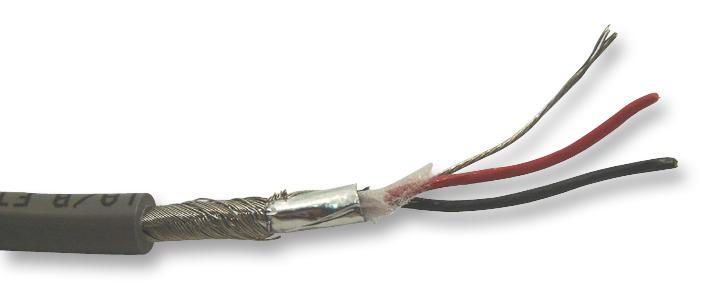

ALPHA WIRE - 86004CY - Multicore Cable, Xtra-Guard® Flex, Per Metre, Screened, 4 Core, 28 AWG, 0.9 mm²

  • Cable Shielding: Screened
  • No. of Cores: 4Core
  • Wire Gauge: 28AWG
  • Conductor Area CSA: 0.9mm²
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Grey
  • No. of Max Strands x Strand Size: 7 x 0.13mm
  • Conductor Material: Copper
  • Jacket Material: PVC
  • External Diameter: 4.8mm
  • Voltage Rating: 300V
  • Product Range: Xtra-Guard&reg
  • SVHC: No SVHC (15-Jan-2019)
  • Bend Flexing Radius Min: 8 X Cable Diameter
  • Cable Type: Foil + Spiral Shield
  • Conductor Make-up: 7 / 0.13mm
  • External Length / Height: 1m
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: 5°C
  • Outer Diameter: 4.8mm
  • Primary Insulation Thickness: 0.25mm
  • Secondary Insulation Colour: Grey
  • Secondary Insulation Material: PVC
  • Secondary Insulation Thickness: 1mm
  • Voltage Rating VAC: 300V
  • Wire Size: 28AWG
