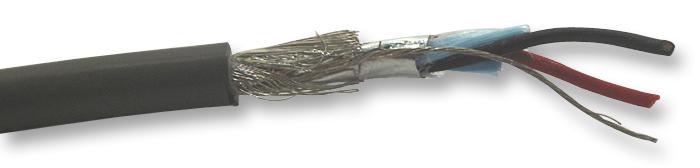

86304CY DATA CABLE 22AWG, SCRN 4CORE, PER M ALPHA WIRE
Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
86304CY DATA CABLE 22AWG, SCRN 4CORE, PER M ALPHA WIRE

86304CY Data Cable 22AWG, SCRN 4CORE, Per M Alpha Wire

ALPHA WIRESKU:86304CY Bestelcode:1515278
Prijs:
€15,30

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

ALPHA WIRE - 86304CY - Multicore Cable, Xtra-Guard® Flex, Per Metre, Screened, 4 Core, 22 AWG, 0.38 mm²

  • Cable Shielding: Screened
  • No. of Cores: 4Core
  • Wire Gauge: 22AWG
  • Conductor Area CSA: 0.38mm²
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Grey
  • No. of Max Strands x Strand Size: 19 x 0.16mm
  • Conductor Material: Copper
  • Jacket Material: PVC
  • External Diameter: 5.7mm
  • Voltage Rating: 300V
  • Product Range: Xtra-Guard&reg
  • SVHC: No SVHC (15-Jan-2019)
  • Bend Flexing Radius Min: 8 X Cable Diameter
  • Cable Type: Foil + Spiral Shield
  • Conductor Make-up: 19 / 0.16mm
  • External Length / Height: 1m
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: 5°C
  • Outer Diameter: 5.7mm
  • Primary Insulation Thickness: 0.25mm
  • Secondary Insulation Colour: Grey
  • Secondary Insulation Material: PVC
  • Secondary Insulation Thickness: 1mm
  • Voltage Rating VAC: 300V
  • Wire Size: 22AWG
