8774 Cable, 8774, 9PAIR, Per M Belden

BELDENSKU:8774 Bestelcode:1218686

Prijs:
Actie prijs€25,23

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (6 units)

Documenten en downloads

Omschrijving

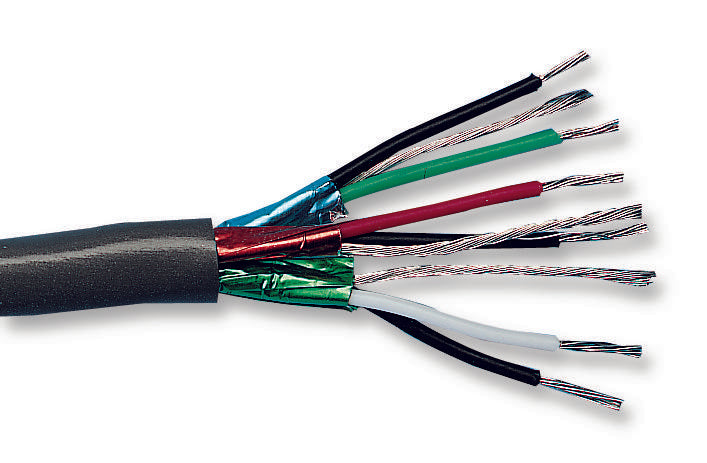

BELDEN - 8774 - Multipair Cable, Per M, Screened, 9 Pair, 22 AWG, 0.325 mm²

  • Cable Shielding: Screened
  • No. of Pairs: 9 Pair
  • Wire Gauge: 22AWG
  • Conductor Area CSA: 0.325mm²
  • Reel Length (Imperial): -
  • Reel Length (Metric): -
  • Jacket Colour: Chrome
  • No. of Max Strands x Strand Size: 7 x 0.255mm
  • Voltage Rating: -
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • External Diameter: 10.6mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Alpha Type Number: 6014C EQUIVALENT
  • Belden Type Number: 8774
  • Cable Type: Foil Shield
  • Cable UL Style Number: UL2919
  • Complex Cable Make-Up: 18 x 7/32
  • Conductor Make-up: 7 / 30AWG
  • Core - Core Capacitance: 98pF/m
  • Current Rating: 1.4A
  • Drain Wire Type: 22AWG (7/30AWG)
  • Flammability Rating: VW-1
  • No. of Cores: 18Core
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -20°C
  • Outer Diameter: 10.6mm
  • Primary Insulation Thickness: 0.25mm
  • Resistance per Metre: 49.2ohm/km
  • Screen Resistance: 34.8ohm/km
  • Screen Type Primary: Aluminium Polyester
  • Secondary Insulation Colour: Chrome
  • Secondary Insulation Material: PVC
  • Wire Size: 22AWG
