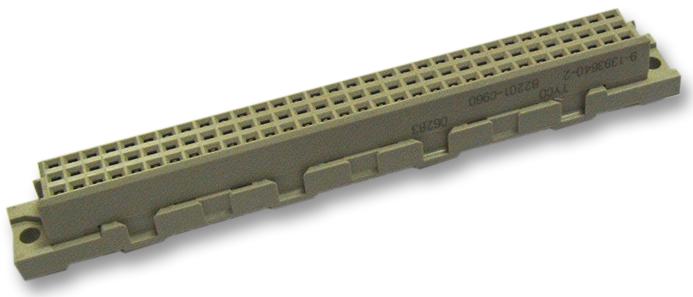

AMP - TE CONNECTIVITY - 9-1393640-3 - DIN 41612 Connector, Type C, 64 Contacts, Receptacle, 2.54 mm, 2 Row, a + c
- Product Range: Type C Series
- No. of Contacts: 64Contacts
- Gender: Receptacle
- Pitch Spacing: 2.54mm
- No. of Rows: 2 Row
- Rows Loaded: a + c
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper
- No. of Mating Cycles: 400
- SVHC: No SVHC (15-Jan-2018)
- Colour: Grey
- Connector Mounting Orientation: Vertical
- Contact Resistance: 15mohm
- Contact Termination: Through Hole Vertical
- Contact Termination Type: Through Hole
- Current Rating: 1A
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Gohm
- Lead Spacing: 2.54mm
- Material: Thermoplastic Glass reinforced
- No. of Rows: 2Rows
- Row Pitch: 2.54mm
- Standard: DIN 41652 Level 2
- Termination Method: Through Hole
- Voltage Rating VAC: 250V
