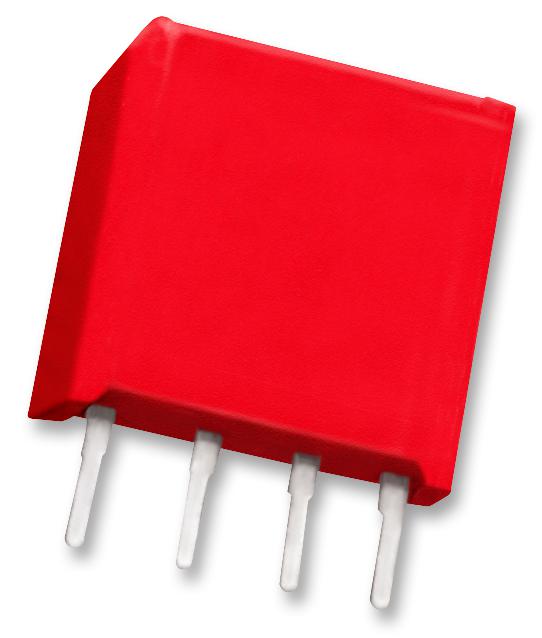

9012-05-11 Relay, Reed, SPST-NO, 200V, 0.5A, THT COTO Technology

COTO TECHNOLOGYSKU:9012-05-11 Bestelcode:1454993

Prijs:
Actie prijs€16,86

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1074 units)

Documenten en downloads

Omschrijving

COTO TECHNOLOGY - 9012-05-11 - Reed Relay, SPST-NO, 5 VDC, 9012, Through Hole, 500 ohm, 500 mA

  • Contact Configuration: SPST-NO
  • Coil Voltage: 5VDC
  • Product Range: 9012 Series
  • Relay Mounting: Through Hole
  • Coil Resistance: 500ohm
  • Switching Current Max: 500mA
  • Switching Voltage Max: 200V
  • SVHC: No SVHC (15-Jan-2019)
  • Coil Voltage Max: 6.5VDC
  • Coil Voltage VDC Nom: 5V
  • Contact Current DC Max: 500mA
  • Contact Resistance: 120mohm
  • Contact Voltage DC Max: 200V
  • External Depth: 10.16mm
  • External Height: 10.16mm
  • External Length / Height: 10.16mm
  • External Width: 3.81mm
  • Insulation Resistance: 10000Mohm
  • Must Actuate Voltage: 3.75VDC
  • Must Release Voltage: 0.4VDC
  • No. of Mechanical Operations: 1000000000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -20°C
  • Operating Time: 0.35ms
  • Release Time: 0.1ms
  • Switch Current Max: 500mA
  • Switch Power Max: 10W
  • Type: Magnetic Shield - With Diode
