Omschrijving

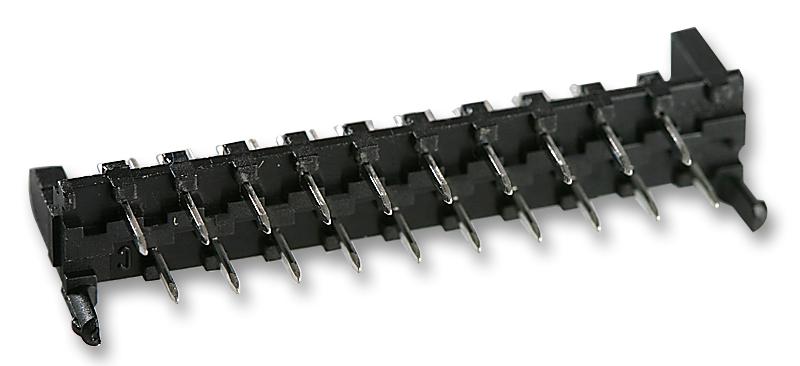

MOLEX - 90325-0020 - Pin Header, Wire-to-Board, 1.27 mm, 1 Rows, 20 Contacts, Through Hole Straight, Picoflex 90325
- Pitch Spacing: 1.27mm
- No. of Contacts: 20Contacts
- Gender: Header
- Product Range: Picoflex 90325 Series
- Contact Termination Type: Through Hole
- No. of Rows: 1Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Brass
- SVHC: No SVHC (15-Jan-2019)
- Colour: Black
- Contact Resistance: 10mohm
- Current Rating: 1.2A
- External Width: 24.13mm
- Fixing Centres: 27.73mm
- Flammability Rating: UL94V-0
- Material: Polyester
- Operating Temperature Max: 105°C
- Operating Temperature Min: -25°C
- Voltage Rating VAC: 250V
- Wire Size AWG Max: 26AWG
- Wire Size AWG Min: 28AWG
- Withstand Voltage: 750V
- Working Voltage: 250V
