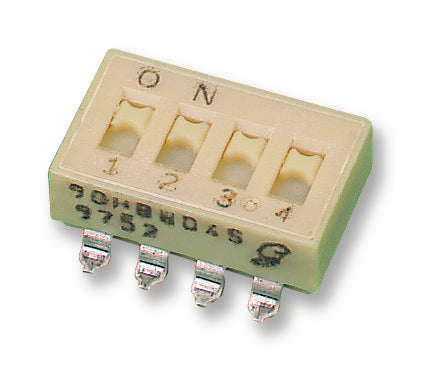

90HBW04PT Switch, Dil, Slide, SMD, 4WAY GRAYHILL

GRAYHILLSKU:90HBW04PT Bestelcode:9479104

Prijs:
Actie prijs€14,01

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (69 units)

Documenten en downloads

Omschrijving

GRAYHILL - 90HBW04PT - DIP / SIP Switch, 4 Circuits, Slide, Surface Mount, SPST, 6 VDC, 100 mA

  • No. of Circuits: 4Circuits
  • Switch Actuator Style: Slide
  • Switch Mounting: SMD
  • Contact Configuration: SPST
  • Contact Voltage DC Max: 6VDC
  • Contact Current DC Max: 100mA
  • Product Range: 90 Series
  • Switch Type: DIP Sealed
  • SVHC: No SVHC (27-Jun-2018)
  • Actuator Type: Ball
  • Contact Plating: Gold over Brass Plated Contacts
  • Contact Resistance: 20mohm
  • Current Rating: 3A
  • Dielectric Strength VDC: 500V
  • External Length / Height: 4.19mm
  • External Width: 7.37mm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Lead Spacing: 2.54mm
  • Length: 11.9mm
  • Material: Thermoplastic UL94V0
  • No. of Mechanical Operations: 5000
  • No. of Positions: 4Ways
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Pin Configuration: DIL
  • Pitch Spacing: 2.54mm
  • Row Pitch: 7.62mm
  • Switch Operation: Off-On
