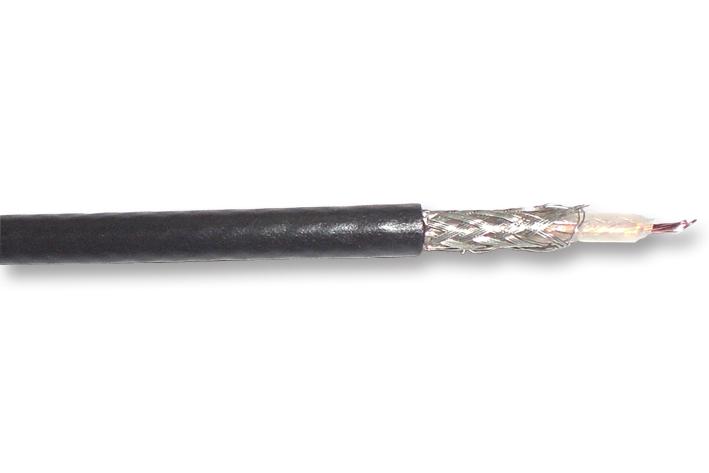

9174 BK001 CABLE, COAX, RG174/U, BLACK, 305M ALPHA WIRE

ALPHA WIRESKU:9174 BK001 Bestelcode:1302765

Prijs:
Actie prijs€379,02

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (17 units)

Documenten en downloads

Omschrijving

ALPHA WIRE - 9174 BK001 - Coaxial Cable, RG174, 26 AWG, 0.14 mm², 50 ohm, 1000 ft, 304.8 m

  • Coaxial Cable Type: RG174
  • Wire Gauge: 26AWG
  • Conductor Area CSA: 0.14mm²
  • Impedance: 50ohm
  • Reel Length (Imperial): 1000ft
  • Reel Length (Metric): 304.8m
  • Jacket Colour: Black
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • No. of Max Strands x Strand Size: 7 x 34AWG
  • External Diameter: 2.54mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Attenuation @ 100MHz: 2.8dB
  • Attenuation @ 10MHz: 0.9dB
  • Attenuation @ 1GHz: 8.5dB
  • Attenuation @ 200MHz: 3.7dB
  • Attenuation @ 400MHz: 17.5dB
  • Attenuation @ 50MHz: 1.9dB
  • Capacitance per Metre: 102pF/m
  • Coaxial Type: RG174/U
  • Conductor Make-up: 7 / 0.16mm
  • Dielectric Insulation Diameter: 1.52mm
  • Dielectric Material: Solid Polyethylene
  • Outer Diameter: 2.54mm
  • Primary Screen material: Tinned Copper Braid
  • Secondary Insulation Colour: Black
  • Secondary Insulation Material: PVC
  • Wire Size: 26AWG
