91A1A-G24-B15L Potentiometer, 10K, 20% Bourns

BOURNSSKU:91A1A-G24-B15L Bestelcode:1688404

Prijs:
Actie prijs€17,40

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (186 units)

Documenten en downloads

Omschrijving

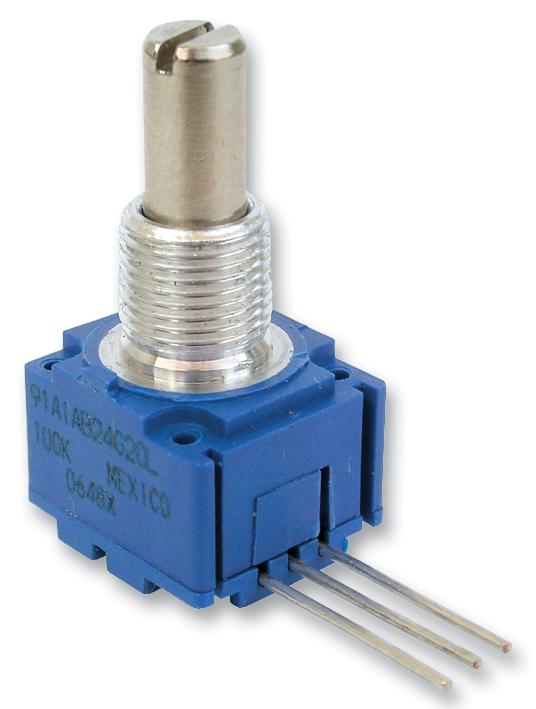

BOURNS - 91A1A-G24-B15L - Rotary Potentiometer, Conductive Plastic, 10 kohm, 1 Turns, Linear, 500 mW, ± 20%, 91

  • Track Resistance: 10kohm
  • No. of Turns: 1Turns
  • Track Taper: Linear
  • Power Rating: 500mW
  • Resistance Tolerance: ± 20%
  • Product Range: 91 Series
  • Potentiometer Mounting: Bushing
  • Shaft Diameter: 6.35mm
  • No. of Gangs: 1
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 19.05mm
  • SVHC: Lead (15-Jan-2019)
  • Contact Resistance Variation +: 0.01%
  • Contact Resistance Variation -: 0.01%
  • External Depth: 15.88mm
  • External Length / Height: 22.86mm
  • External Width: 15.88mm
  • Linearity, +: 0.05%
  • Linearity, -: 0.05%
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +125°C
  • Resistor Element Material: Conductive Plastic
  • Rotation Electrical Angle: 240°
  • Temperature Coefficient: ± 1000ppm/°C
  • Termination Type: Through Hole
  • Voltage Rating: 1.5kV
