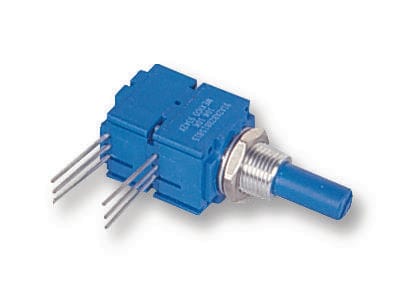

91A2A-B28-B15/B15L Potentiometer, Dual 10K Bourns

BOURNSSKU:91A2A-B28-B15/B15L Bestelcode:9357840

Prijs:
Actie prijs€18,51

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (86 units)

Documenten en downloads

Omschrijving

BOURNS - 91A2A-B28-B15/B15L - Rotary Potentiometer, Conductive Plastic, 10 kohm, 1 Turns, Linear, 1 W, ± 20%, 91

  • Track Resistance: 10kohm
  • No. of Turns: 1Turns
  • Track Taper: Linear
  • Power Rating: 1W
  • Resistance Tolerance: ± 20%
  • Product Range: 91 Series
  • Potentiometer Mounting: Through Hole
  • Shaft Diameter: 6.35mm
  • No. of Gangs: 1
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 22.2mm
  • SVHC: Lead (15-Jan-2019)
  • Contact Resistance Variation +: 1%
  • Electrical Angular Rotation Tolerance +: 5°
  • Electrical Angular Rotation Tolerance -: 5°
  • External Depth: 22.8mm
  • External Length / Height: 17.5mm
  • External Width: 15.9mm
  • Full Power Rating Temperature: 70°C
  • Mechanical Angular Rotation Tolerance +: 5°
  • Mechanical Angular Rotation Tolerance -: 5°
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: 1°C
  • Operating Temperature Range: +1°C to +125°C
  • Proof Voltage: 1000V
  • Resistance: 10kohm
  • Resistor Element Material: Conductive Plastic
  • Rotation Electrical Angle: 240°
  • Rotation Mechanical Angle: 300°
  • Temperature Coeff. +: 1000ppm/°C
  • Temperature Coeff. -: 1000ppm/°C
  • Temperature Coefficient: ± 1000ppm/°C
