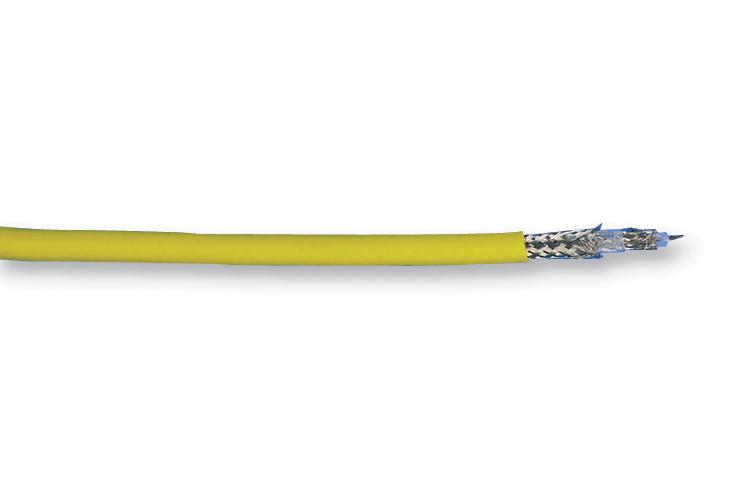

BELDEN - 9222 004100 - Triaxial Cable, RG58A, 50 Ohm, Double Braid Shield, RG58A, 20 AWG, 7 x 0.32mm, 50 ohm, 100 ft
- Coaxial Cable Type: RG58A
- Wire Gauge: 20AWG
- No. of Max Strands x Strand Size: 7 x 0.32mm
- Impedance: 50ohm
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- External Diameter: 6.1mm
- Conductor Material: Tinned Copper
- Jacket Colour: Yellow
- Jacket Material: PVC
- Conductor Area CSA: -
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Attenuation @ 100MHz: 16.1dB
- Attenuation @ 10MHz: 4.9dB
- Attenuation @ 1GHz: 78.7dB
- Attenuation @ 1MHz: 1.6dB
- Attenuation @ 400MHz: 39.4dB
- Belden Type Number: 9222
- Capacitance per Metre: 101pF/m
- Coaxial Type: RG58AU
- Conductor Make-up: 7 / 28AWG
- Core Diameter: 0.94mm
- Operating Temperature Max: 75°C
- Operating Temperature Min: -40°C
- Outer Diameter: 6.1mm
- Screen Type Primary: Tinned Copper
- Screen Type, Secondary: Tinned Copper
- Secondary Insulation Colour: Yellow
- Secondary Insulation Material: PVC
- Velocity of Propagation (%): 66%
- Wire Size: 20AWG
