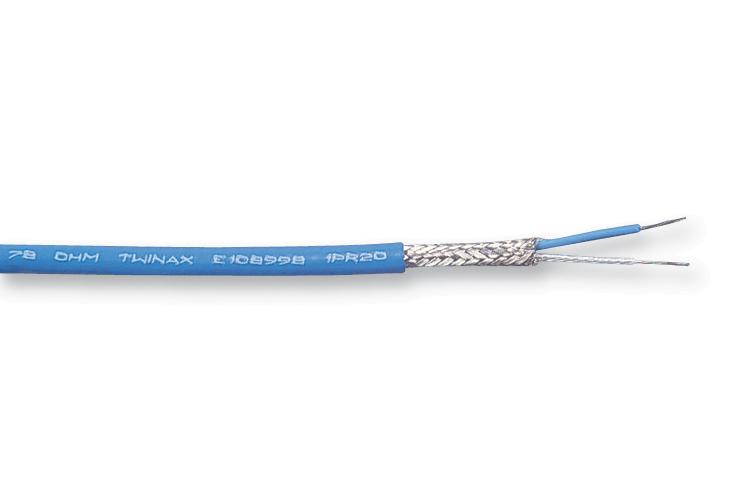

BELDEN - 9272 006U500 - Twinaxial Cable, 20 AWG, 0.51 mm², 78 ohm, Blue, 498.69 ft, 152.4 m
- Wire Gauge: 20AWG
- Conductor Area CSA: 0.51mm²
- Impedance: 78ohm
- Jacket Colour: Blue
- Reel Length (Imperial): 498.69ft
- Reel Length (Metric): 152.4m
- No. of Max Strands x Strand Size: 7 x 0.32mm
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- External Diameter: 6.2mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Alpha Type Number: 9815C EQUIVALENT
- Approval Bodies: UL
- Belden Type Number: 9272
- Cable Type: Twinaxial
- Cable UL Style Number: UL2092
- Capacitance: 64.6pF/m
- Complex Cable Make-Up: 2 x 7/28
- Conductor Make-up: 7 / 28AWG
- No. of Cores: 2Core
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Outer Diameter: 6.2mm
- Screen Type Primary: Tinned Copper Braid
- Secondary Insulation Colour: Blue
- Secondary Insulation Material: PVC
- Velocity of Propagation (%): 66%
- Voltage Rating: 300V
- Voltage Rating VAC: 300V
- Wire Size: 20AWG
