937-SP-3088R Plug, Modular, 8WAY, PK10 Stewart Connector

STEWART CONNECTORSKU:937-SP-3088R Bestelcode:429806

Prijs:
Actie prijs€8,39

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (137 units)

Documenten en downloads

Omschrijving

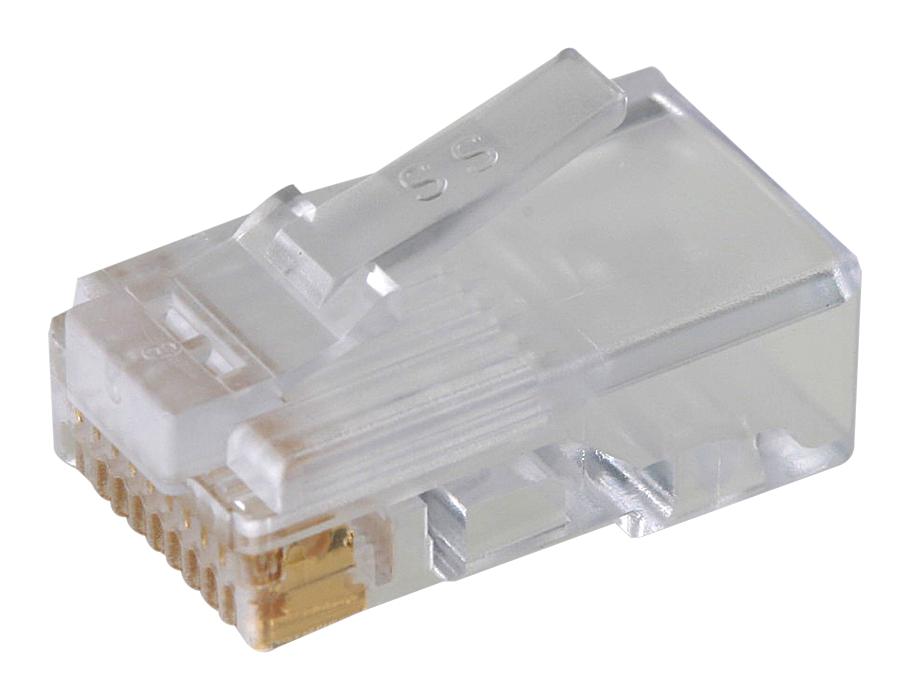

STEWART CONNECTOR - 937-SP-3088R - Modular Connector, RJ45 Plug, 1 x 1 (Port), 8P8C, Cable Mount

  • Modular Connector Type: RJ45 Plug
  • Port Configuration: 1 x 1 Port
  • No. of Positions / Loaded Contacts (per Port): 8P8C
  • LAN Category: -
  • IP Rating: -
  • Connector Mounting: Cable Mount
  • Connector Orientation: Vertical
  • Shielding: Unshielded
  • Magnetics: Without Magnetics
  • LEDs: Without LED
  • Light Pipes: Without Light Pipe
  • Product Range: 30 Series
  • SVHC: No SVHC (15-Jun-2015)
  • Approval Bodies: CSA, UL
  • Body Plating: Gold
  • Case Material: Polycarbonate
  • Colour: Clear
  • Connector Type: RJ45
  • Contact Material: Phosphor Bronze
  • Contact Plating: Gold Plated Contacts
  • Contact Resistance: 10mohm
  • Contact Termination: Crimp
  • Contact Termination Type: Crimp
  • Current Rating: 1.5A
  • External Depth: 7.9mm
  • External Length / Height: 22.5mm
  • External Width: 11.7mm
  • Flammability Rating: UL94V-0
  • Gender: Plug
  • Insulation Resistance: 500Mohm
  • No. of Contacts: 8Contacts
  • No. of Mating Cycles: 1000
  • No. of Ports: 1Ports
  • No. of Positions: 8Ways
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Wire Size: 26AWG
