Omschrijving

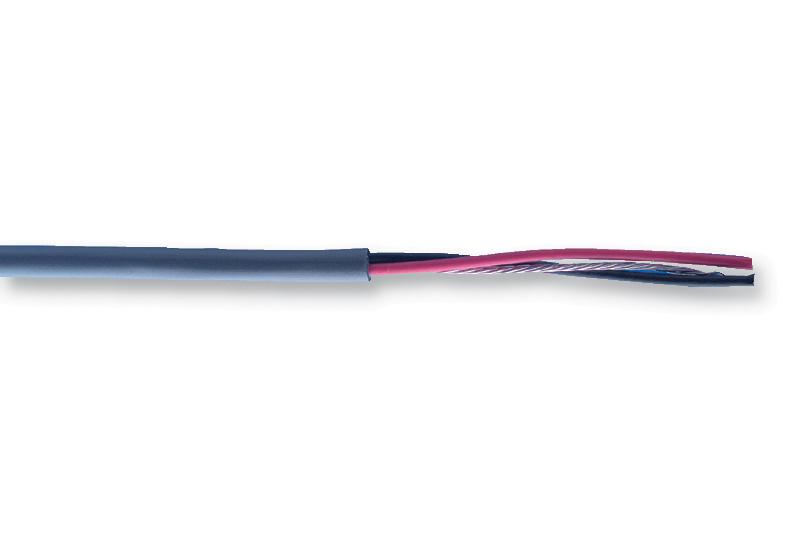

BELDEN - 9451 008U500 - Multipair Cable, Audio Control, Screened, 1 Pair, 22 AWG, 0.325 mm², 500 ft, 152.4 m
- Cable Shielding: Screened
- No. of Pairs: 1 Pair
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.325mm²
- Reel Length (Imperial): 500ft
- Reel Length (Metric): 152.4m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 7 x 30AWG
- Voltage Rating: 300V
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- External Diameter: 3.429mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Cable Type: Foil Shield
- Core - Core Capacitance: 111pF/m
- Current Rating: 2.9A
- Drain Wire Type: Integral
- Screen Type Primary: Aluminium Polyester
- Secondary Insulation Thickness: 0.51mm
