95009-7641 Socket, FCC-68, 6Way, 4CONTACT Molex

MOLEXSKU:95009-7641 Bestelcode:2076091

Prijs:
Actie prijs€1,72

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (5511 units)

Documenten en downloads

Omschrijving

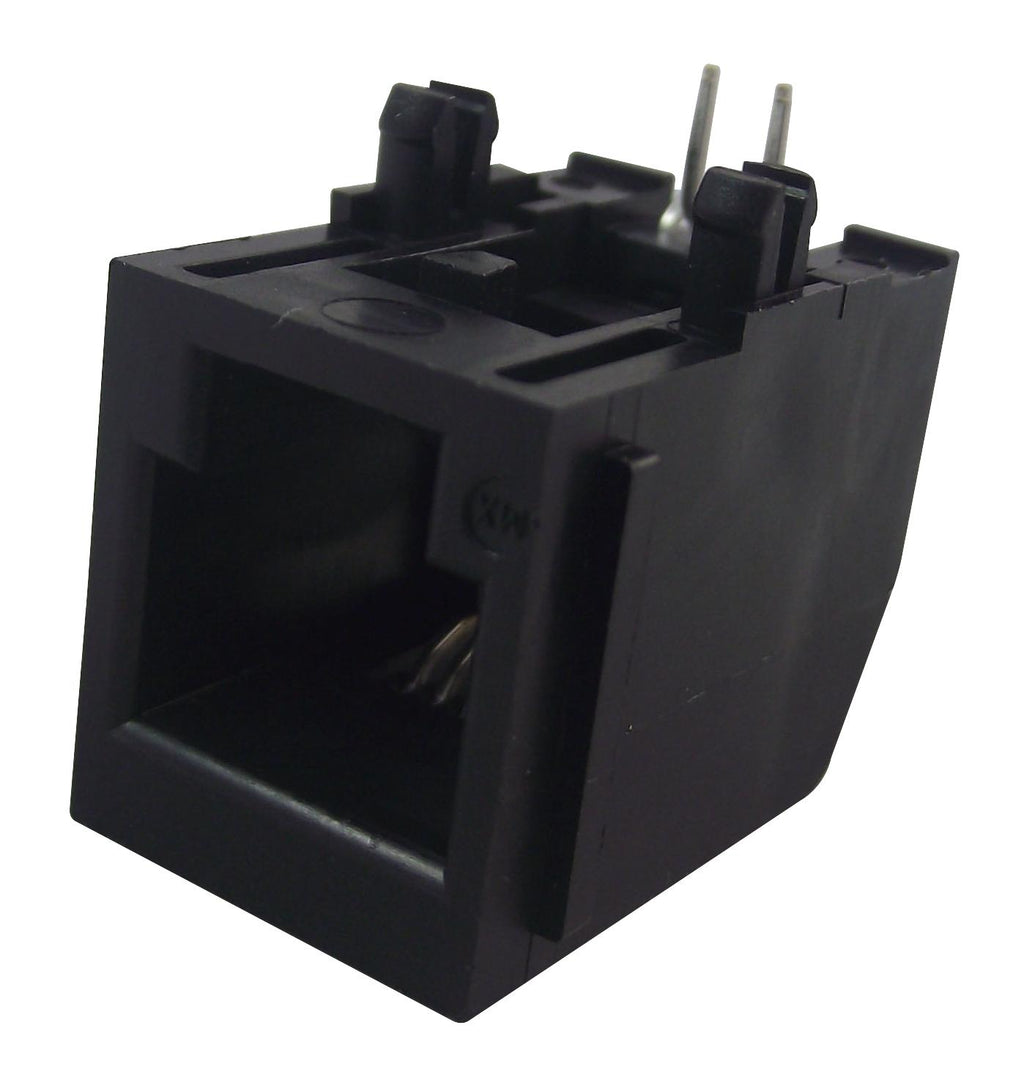

MOLEX - 95009-7641 - Modular Connector, Modular Jack, 1 x 1 (Port), 6P4C, Cat3, Through Hole Mount

  • Modular Connector Type: Modular Jack
  • Port Configuration: 1 x 1 Port
  • No. of Positions / Loaded Contacts (per Port): 6P4C
  • LAN Category: Cat3
  • IP Rating: -
  • Connector Mounting: Through Hole Mount
  • Connector Orientation: Right Angle
  • Shielding: Unshielded
  • Magnetics: Without Magnetics
  • LEDs: Without LED
  • Light Pipes: Without Light Pipe
  • Product Range: 95009 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: UL
  • Colour: Black
  • Connector Type: RJ11
  • Contact Material: Phosphor Bronze
  • Contact Plating: Gold Plated Contacts
  • Contact Resistance: 20mohm
  • Contact Termination: Through Hole Right Angle
  • Contact Termination Type: Through Hole
  • Current Rating: 1.5A
  • External Depth: 20.6mm
  • External Length / Height: 13.59mm
  • External Width: 16.38mm
  • Flammability Rating: UL94V-0
  • Gender: Jack
  • Height: 13.59mm
  • Insulation Resistance: 500Mohm
  • Material: Polyester
  • No. of Contacts: 4Contacts
  • No. of Ports: 1Ports
  • No. of Positions: 6Ways
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -40°C
