9501 060U100 Cable, 9501, 1Pair, 30.5m Belden

BELDENSKU:9501 060U100 Bestelcode:1182119

Prijs:
Actie prijs€47,52

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (23 units)

Documenten en downloads

Omschrijving

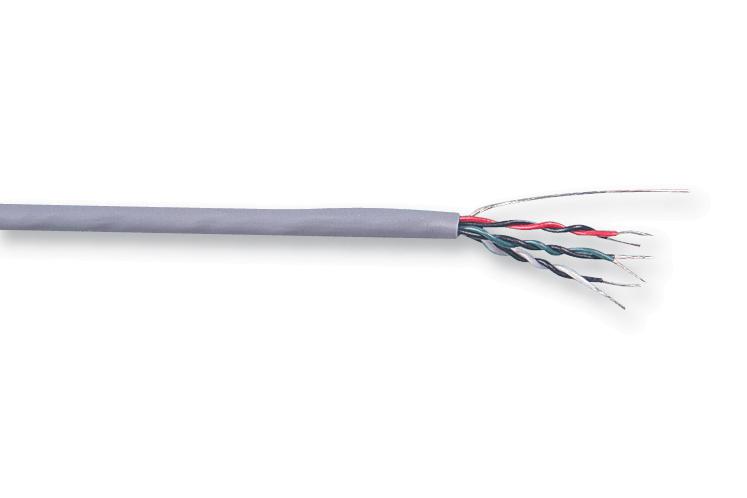

BELDEN - 9501 060U100 - Multipair Cable, Computer, Screened, 1 Pair, 24 AWG, 0.2 mm², 98.43 ft, 30 m

  • Cable Shielding: Screened
  • No. of Pairs: 1 Pair
  • Wire Gauge: 24AWG
  • Conductor Area CSA: 0.2mm²
  • Reel Length (Imperial): 98.43ft
  • Reel Length (Metric): 30m
  • Jacket Colour: Chrome
  • No. of Max Strands x Strand Size: 7 x 0.2mm
  • Voltage Rating: 300V
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • External Diameter: 3.96mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Alpha Type Number: 5471C EQUIVALENT
  • Approval Bodies: UL
  • Belden Type Number: 9501
  • Cable Type: Foil Shield
  • Cable UL Style Number: UL2464
  • Complex Cable Make-Up: 2 x 7/32
  • Conductor Make-up: 7 / 32AWG
  • Core - Core Capacitance: 131pF/m
  • Core-Screen Capacitance: 243pF/m
  • Drain Wire Type: Tinned Copper
  • No. of Cores: 2Core
  • Outer Diameter: 3.96mm
  • Primary Conductor Resistance: 78.7ohm/km
  • Screen Resistance: 59.1ohm/km
  • Screen Type Primary: Aluminium / Polyester
  • Secondary Insulation Colour: Chrome
  • Secondary Insulation Material: PVC
  • Wire Size: 24AWG
