Omschrijving

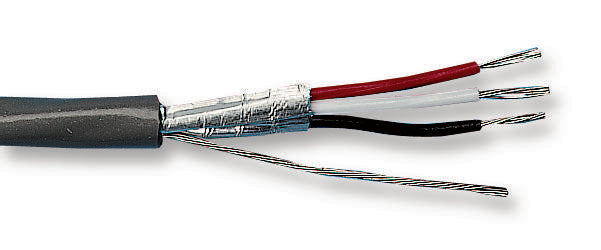

BELDEN - 9533 - Multicore Cable, Computer, EIA RS-232, Per Metre, Screened, 3 Core, 24 AWG, 0.2 mm²
- Cable Shielding: Screened
- No. of Cores: 3Core
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.2mm²
- Reel Length (Imperial): -
- Reel Length (Metric): -
- Jacket Colour: Chrome
- No. of Max Strands x Strand Size: 7 x 0.2mm
- Conductor Material: Copper
- Jacket Material: PVC
- External Diameter: 4.11mm
- Voltage Rating: 300V
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Alpha Type Number: 6300/3 EQUIVALENT
- Approval Bodies: CSA, SRPVC, UL
- Belden Type Number: 9533
- Cable Type: Foil Shield
- Cable UL Style Number: UL2464
- Conductor Make-up: 7 / 32AWG
- Current Rating: 1.75A
- Outer Diameter: 4.11mm
- Screen Type Primary: Aluminium Polyester
- Secondary Insulation Colour: Chrome
- Secondary Insulation Material: PVC
- Wire Size: 24AWG
