9533.00152 Cable, 3CORE, 24AWG, 152.4m, 300V Belden

BELDENSKU:9533.00152 Bestelcode:1182152

Prijs:
Actie prijs€293,23

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (10 units)

Documenten en downloads

Omschrijving

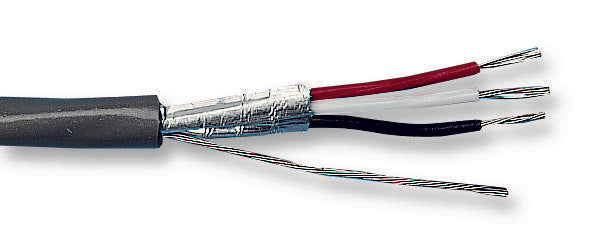

BELDEN - 9533.00152 - Multicore Cable, Computer, Screened, 3 Core, 24 AWG, 0.2 mm², 498.69 ft, 152 m

  • Cable Shielding: Screened
  • No. of Cores: 3Core
  • Wire Gauge: 24AWG
  • Conductor Area CSA: 0.2mm²
  • Reel Length (Imperial): 498.69ft
  • Reel Length (Metric): 152m
  • Jacket Colour: Chrome
  • No. of Max Strands x Strand Size: 7 x 0.2mm
  • Conductor Material: Copper
  • Jacket Material: PVC
  • External Diameter: 4.11mm
  • Voltage Rating: 300V
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Alpha Type Number: 6300/3 EQUIVALENT
  • Approval Bodies: CSA, SRPVC, UL
  • Belden Type Number: 9533
  • Cable Type: Foil Shield
  • Cable UL Style Number: UL2464
  • Conductor Make-up: 7 / 32AWG
  • Current Rating: 1.75A
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -30°C
  • Outer Diameter: 4.11mm
  • Screen Type Primary: Aluminium Polyester
  • Secondary Insulation Colour: Chrome
  • Secondary Insulation Material: PVC
  • Wire Size: 24AWG
