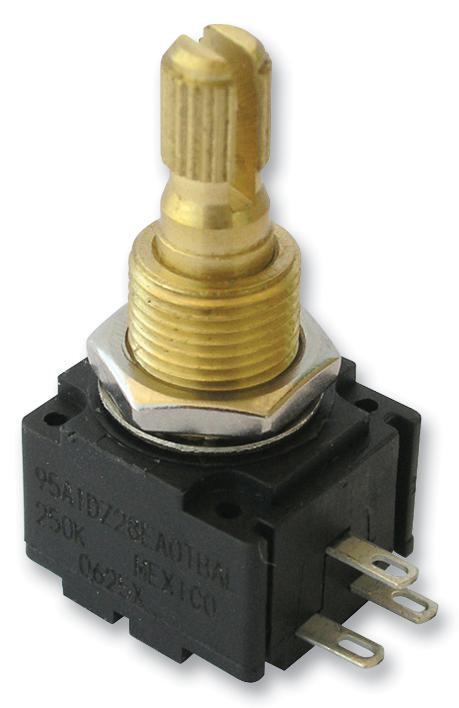

95A1D-Z28-EA0/303L Pot, Audio, 500K, Plain Shaft Bourns

BOURNSSKU:95A1D-Z28-EA0/303L Bestelcode:1546726

Prijs:
Actie prijs€23,90

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (110 units)

Documenten en downloads

Omschrijving

BOURNS - 95A1D-Z28-EA0/303L - Rotary Potentiometer, Guitar, 500 kohm, 1 Turns, Logarithmic, 250 mW, ± 20%, 95

  • Track Resistance: 500kohm
  • No. of Turns: 1Turns
  • Track Taper: Logarithmic
  • Power Rating: 250mW
  • Resistance Tolerance: ± 20%
  • Product Range: 95 Series
  • Potentiometer Mounting: Bushing
  • Shaft Diameter: 6.31mm
  • No. of Gangs: 1
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 22.23mm
  • SVHC: Lead (15-Jan-2019)
  • Bush Thread Length: 11.05mm
  • Contact Resistance Variation +: 1%
  • Contact Resistance Variation -: 1%
  • Electrical Angular Rotation Tolerance +: 5°
  • Electrical Angular Rotation Tolerance -: 5°
  • External Depth: 12.7mm
  • External Length / Height: 15.88mm
  • External Width: 15.88mm
  • IP / NEMA Rating: IP40
  • Mechanical Angular Rotation Tolerance +: 5°
  • Mechanical Angular Rotation Tolerance -: 5°
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +125°C
  • Resistor Element Material: Conductive Plastic
  • Rotation Electrical Angle: 225°
  • Rotation Mechanical Angle: 300°
  • Rotational Life Cycles: 100000
  • Temperature Coefficient: ± 1000ppm/°C
