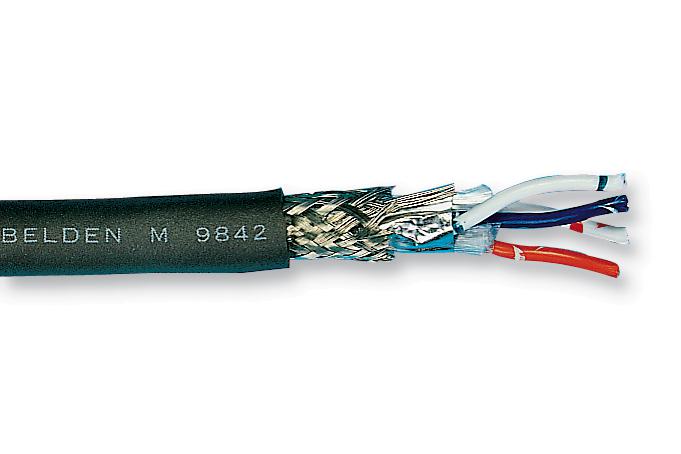

BELDEN - 9842 060500 - Multipair Cable, Computer, Screened, 2 Pair, 24 AWG, 0.2 mm², 498.69 ft, 152.4 m
- Cable Shielding: Screened
- No. of Pairs: 2 Pair
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.2mm²
- Reel Length (Imperial): 498.69ft
- Reel Length (Metric): 152.4m
- Jacket Colour: Chrome
- No. of Max Strands x Strand Size: 7 x 32AWG
- Voltage Rating: 300V
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- External Diameter: 8.64mm
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Alpha Type Number: 6413 EQUIVALENT
- Belden Type Number: 9842
- Cable Type: Foil + Braided Shield
- Cable UL Style Number: UL2919
- Complex Cable Make-Up: 4 x 7/32
- Conductor Make-up: 7 / 32AWG
- Core-Screen Capacitance: 42pF/m
- Current Rating: 2.1A
- Drain Wire Type: 24 AWG Tinned Copper
- Impedance: 120ohm
- No. of Cores: 4Core
- Outer Diameter: 8.64mm
- Screen Type Primary: Aluminium / Polyester Foil
- Screen Type, Secondary: Tinned copper braid
- Secondary Insulation Colour: Chrome
- Secondary Insulation Material: PVC
- Velocity of Propagation (%): 66%
- Wire Size: 24AWG
