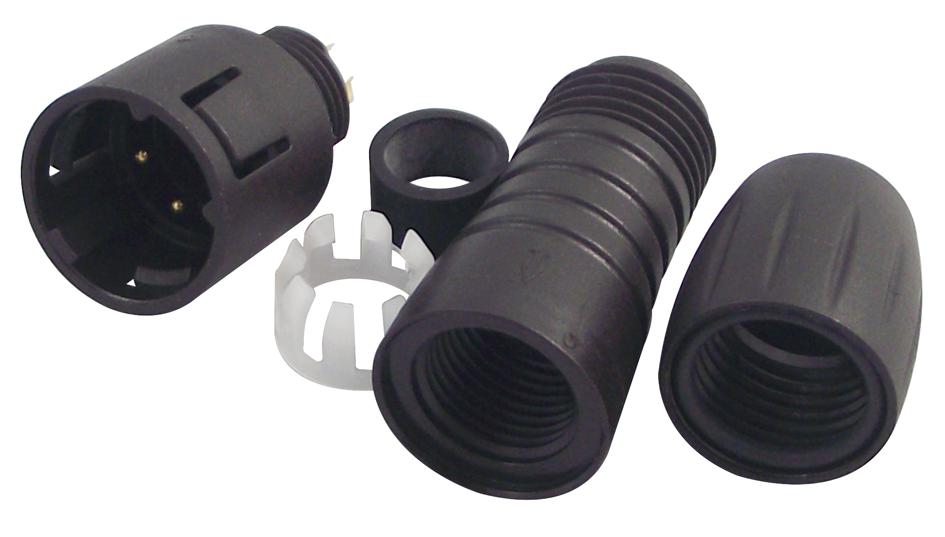

99-9209-00-04 Circular Connector, Plug, 4 Way, Cable Binder

BINDERSKU:99-9209-00-04 Bestelcode:1437596

Prijs:
Actie prijs€13,41

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (7807 units)

Documenten en downloads

Omschrijving

BINDER - 99-9209-00-04 - Circular Connector, 620 Series, Cable Mount Plug, 4 Contacts, Solder Pin, Nylon (Polyamide) Body

  • Product Range: 620 Series
  • Circular Connector Shell Style: Cable Mount Plug
  • No. of Contacts: 4Contacts
  • Circular Contact Type: Solder Pin
  • Coupling Style: -
  • Connector Body Material: Nylon (Polyamide) Body
  • Connector Body Plating: -
  • Contact Material: Brass
  • Contact Plating: Gold
  • SVHC: Lead (27-Jun-2018)
  • Cable Diameter Max: 5mm
  • Cable Diameter Min: 3mm
  • Connector Mounting: Cable Mount
  • Connector Type: Circular Industrial
  • Contact Gender: Pin
  • Contact Plating: Gold Plated Contacts
  • Contact Termination: Solder
  • Contact Termination Type: Solder
  • Current Rating: 2.5A
  • Flammability Rating: UL94V-0
  • Gender: Plug
  • IP / NEMA Rating: IP67
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Wire Area Size Max: 0.25mm²
  • Wire Size AWG Max: 24AWG
  • Working Voltage: 125V
