99-9212-00-04 Circular, Receptacle, 4 Way, Panel Binder

BINDERSKU:99-9212-00-04 Bestelcode:1437603

Prijs:
Actie prijs€9,42

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (6946 units)

Documenten en downloads

Omschrijving

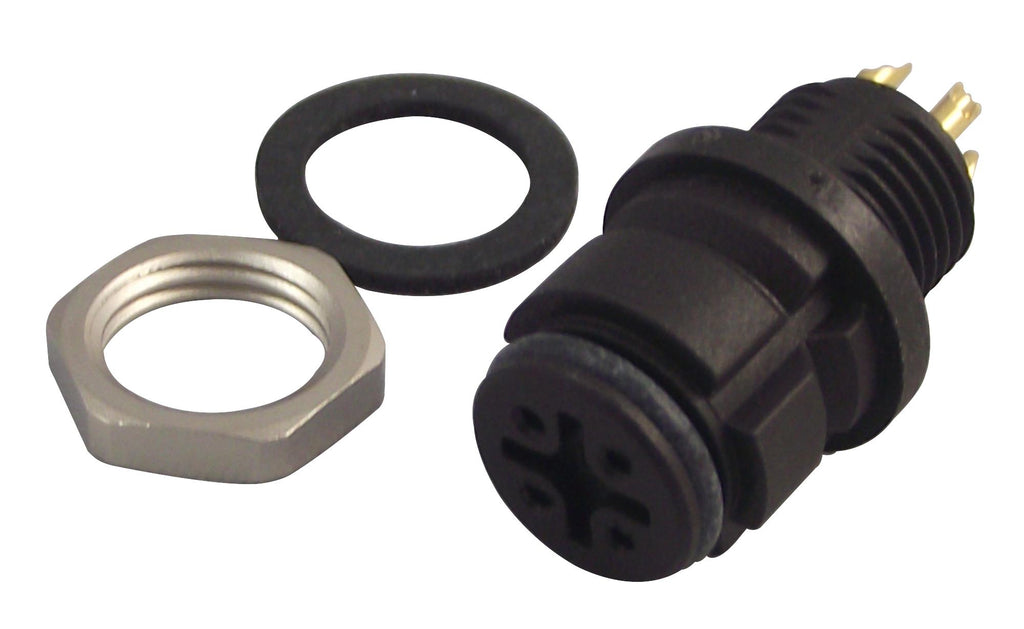

BINDER - 99-9212-00-04 - Circular Connector, 620 Series, Panel Mount Receptacle, 4 Contacts, Solder Socket

  • Product Range: 620 Series
  • Circular Connector Shell Style: Panel Mount Receptacle
  • No. of Contacts: 4Contacts
  • Circular Contact Type: Solder Socket
  • Coupling Style: -
  • Connector Body Material: Nylon (Polyamide) Body
  • Connector Body Plating: -
  • Contact Material: Bronze
  • Contact Plating: Gold
  • SVHC: Lead (27-Jun-2018)
  • Cable Diameter Max: 5mm
  • Cable Diameter Min: 3mm
  • Connector Mounting: Panel Mount
  • Connector Type: Circular
  • Contact Gender: Socket
  • Contact Plating: Gold Plated Contacts
  • Contact Termination: Solder
  • Contact Termination Type: Solder
  • Current Rating: 2.5A
  • Flammability Rating: UL94V-0
  • Gender: Receptacle
  • IP / NEMA Rating: IP67
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Wire Area Size Max: 0.25mm²
  • Wire Size AWG Max: 24AWG
  • Working Voltage: 125V
