A165S-J2M-2 Selector Switch Omron

OMRONSKU:A165S-J2M-2 Bestelcode:1372568

Prijs:
Actie prijs€30,81

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (33 units)

Documenten en downloads

Omschrijving

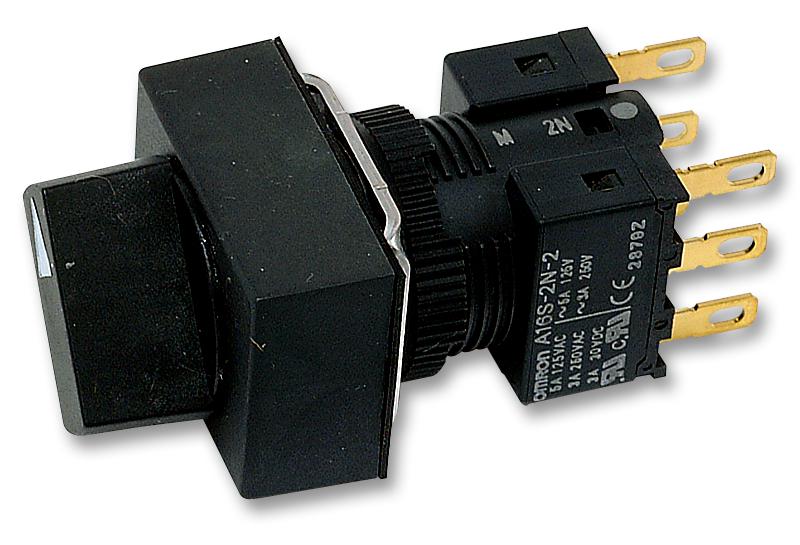

OMRON - A165S-J2M-2 - Rotary Switch, 2 Position, 2 Pole, 45 °, 5 A, 250 V, Non-Illuminated Series

  • No. of Switch Positions: 2 Position
  • No. of Poles: 2 Pole
  • Angle of Throw: 45°
  • Contact Current AC Max: 5A
  • Contact Voltage AC Max: 250V
  • Product Range: Non-Illuminated Series
  • Illumination: Non Illuminated
  • Contact Current DC Max: 3A
  • Contact Voltage DC Max: 30V
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: CE, CSA, UL
  • Approval Category: Conforms to EN 60947-5-1, IEC 947-5-1
  • Behind Panel Depth: 28.5mm
  • Colour: Black
  • Contact Current @ Contact Voltage AC Max: 5A
  • Contact Current @ Contact Voltage DC Max: 3A
  • Contact Current @ Contact Voltage DC Min: 1mA
  • Contact Voltage DC Min: 5VDC
  • External Depth: 47mm
  • External Length / Height: 18mm
  • External Width: 24mm
  • Indexing Angle: 45°
  • Insulation Resistance Voltage: 500VDC
  • No. of Electrical Operations: 100000
  • No. of Mechanical Operations: 250000
  • No. of Positions: 2Ways
  • Operating Force: 9.81N
  • Operating Force Max: 0.1N
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -10°C
  • Stop Setting: Maintained
