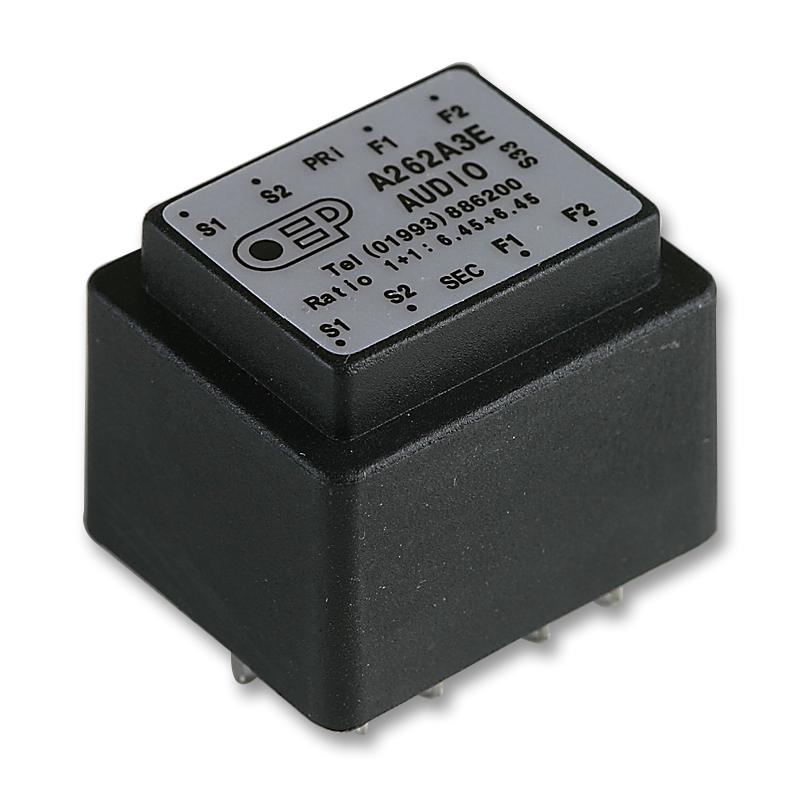

A262A3E Transformer, 1+1:6.45+6.45, 150/6.25 OEP (Oxford Electrical Products)

OEP (OXFORD ELECTRICAL PRODUCTS)SKU:A262A3E Bestelcode:1172344

Prijs:
Actie prijs€24,87

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (97 units)

Documenten en downloads

Omschrijving

OEP (OXFORD ELECTRICAL PRODUCTS) - A262A3E - Audio Transformer, 1:6.45, 150 ohm, 6.25 kohm, 100 mW, 35 kHz, 1 kV

  • TRANSFORMER, 1+1: 6.45+6.45, 150/6.25
  • Current Rating: -
  • Primary Impedance: 150ohm
  • Secondary Impedance: 6.25kohm
  • Transformer Mounting: Through Hole
  • Product Range: A262 Series
  • SVHC: No SVHC (15-Jan-2019)
  • DC Secondary Resistance: 535+605kR
  • External Depth: 23mm
  • External Length / Height: 22mm
  • External Width: 28mm
  • Frequency Max: 25kHz
  • Frequency Min: 30Hz
  • Individual Primary Winding Impedance: 150+150R
  • Individual Secondary Winding Impedance: 6.25+6.25kR
  • Lower Frequency Bandwidth: 40Hz
  • Power Rating: 100mW
  • Primary DC resistance: 9.6+10R
  • Series Connected Primary Impedance: 600ohm
  • Series Connected Secondary Impedance: 25kohm
  • Turns Ratio: 1+1
  • Upper Frequency Bandwidth: 25kHz
