A3AA-91K1-00EG Switch, SPST, Mom, Green Omron

OMRONSKU:A3AA-91K1-00EG Bestelcode:1181286

Prijs:
Actie prijs€19,82

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (5 units)

Documenten en downloads

Omschrijving

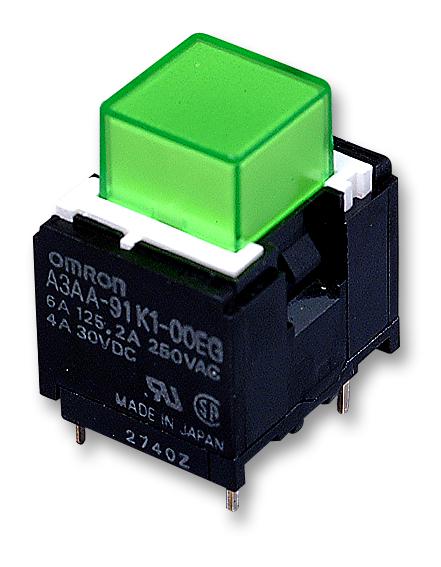

OMRON - A3AA-91K1-00EG - Pushbutton Switch, A3A, SPST-NO, Off-(On), Square, Green

  • Switch Operation: Off-(On)
  • Pushbutton Actuator Style: Square
  • Contact Configuration: SPST-NO
  • Product Range: A3A Series
  • Switch Terminals: PC Pin
  • IP Rating: IP00
  • Contact Current Max: 6A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 250V
  • Actuation Type: Square
  • Actuator / Cap Colour: Green
  • Approval Bodies: CSA, UL, VDE
  • Colour: Green
  • Contact Current @ Contact Voltage AC Max: 6A
  • Contact Current AC Max: 6A
  • Contact Current DC: 1mA
  • Contact Current DC Max: 4A
  • Contact Voltage VAC: 125V
  • Contact Voltage VDC: 30V
  • External Depth: 14.5mm
  • External Length / Height: 12.7mm
  • External Width: 15.2mm
  • Illumination Colour: Green
  • Insulation Resistance: 100Mohm
  • LED Voltage: 3V
  • Operating Force: 2.45N
  • Operating Temperature Max: 75°C
  • Operating Temperature Min: -10°C
  • Pushbutton Switch Type: Standard
  • Switch Mounting: Through Hole
