A3CT-7021 Switch, SPDT, Latching Omron

OMRONSKU:A3CT-7021 Bestelcode:1181358

Prijs:
Actie prijs€22,08

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (19 units)

Documenten en downloads

Omschrijving

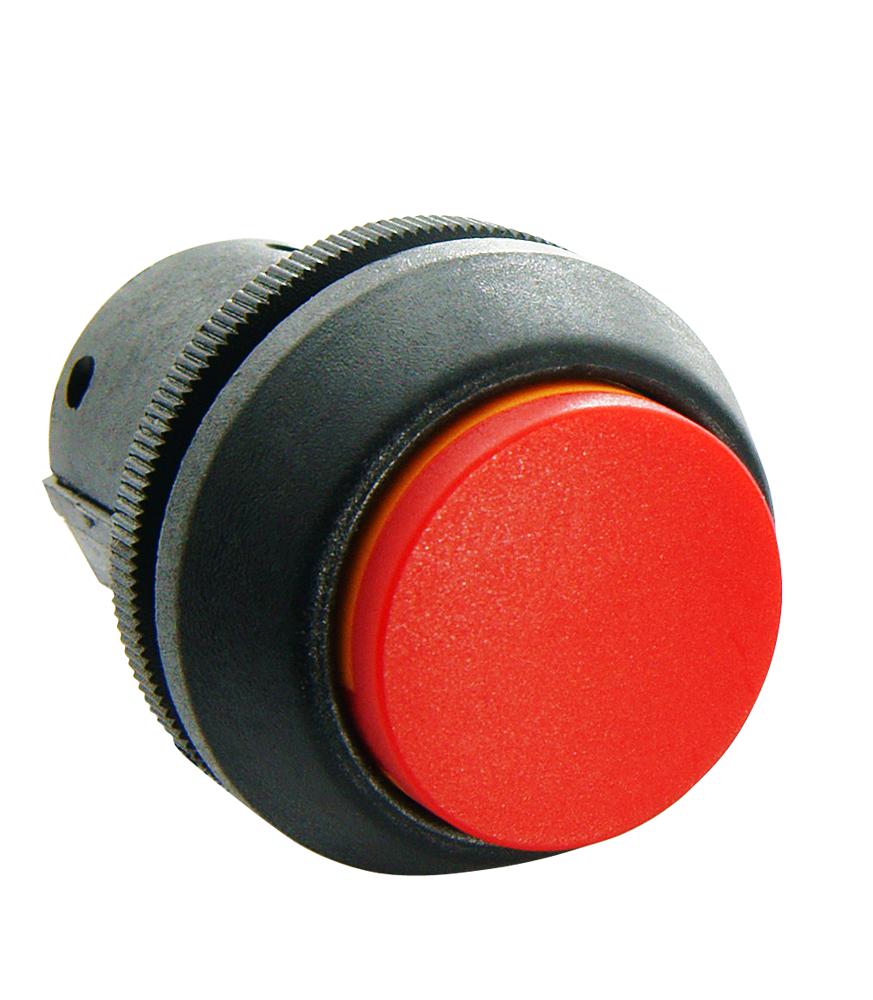

OMRON - A3CT-7021 - Pushbutton Switch, A3C, 12 mm, SPST-NO, SPST-NC, On-Off, Round

  • Product Range: A3C Series
  • Contact Configuration: SPST-NO, SPST-NC
  • Switch Operation: On-Off
  • Contact Current Max: 1A
  • Contact Voltage AC Nom: 250V
  • Illumination Colour: -
  • Contact Voltage DC Nom: 30V
  • Switch Terminals: Solder Lug
  • SVHC: No SVHC (27-Jun-2018)
  • Actuation Type: Round
  • Approval Bodies: CSA, UL
  • Behind Panel Depth: 26.5mm
  • Bezel Diameter: 14mm
  • Contact Current DC Max: 100mA
  • Contact Current Rating: 1A
  • Contact Voltage VDC: 30V
  • External Length / Height: 29.5mm
  • IP / NEMA Rating: IP40
  • IP Rating: IP40
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -10°C
  • Panel Cutout Diameter: 12mm
  • Pushbutton Actuator Style: Round
  • Pushbutton Switch Type: Standard
  • Switch Mounting: Panel
