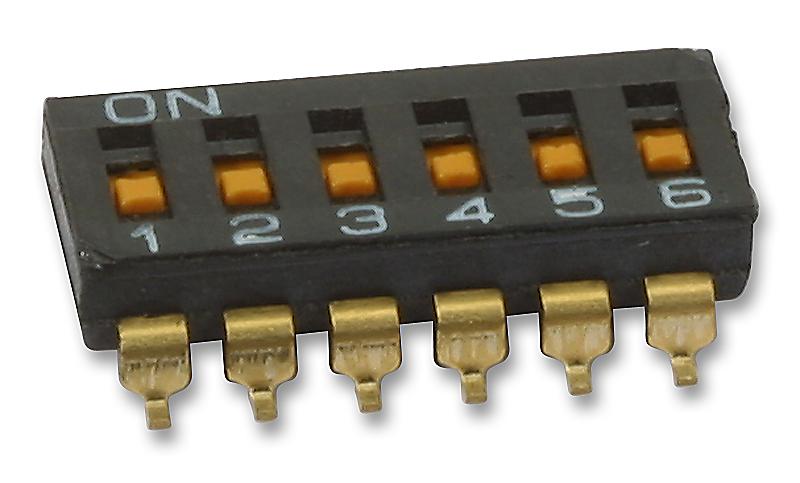

A6S-6102-H Switch, Dip, SMD, 6Way Omron

OMRONSKU:A6S-6102-H Bestelcode:1455490

Prijs:
Actie prijs€4,02

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (534 units)

Documenten en downloads

Omschrijving

OMRON - A6S-6102-H - DIP / SIP Switch, 6 Circuits, Slide, Surface Mount, SPST, 24 VDC, 25 mA

  • No. of Circuits: 6Circuits
  • Switch Actuator Style: Slide
  • Switch Mounting: SMD
  • Contact Configuration: SPST
  • Contact Voltage DC Max: 24VDC
  • Contact Current DC Max: 25mA
  • Product Range: A6S-H Series
  • Switch Type: DIP Sealed
  • Actuation Type: Flat
  • Contact Resistance: 200mohm
  • Contact Voltage DC Min: 3.5VDC
  • Dielectric Strength VDC: 500VAC
  • External Depth: 6.2mm
  • External Length / Height: 3mm
  • External Width: 16.18mm
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 250VDC
  • Lead Spacing: 2.54mm
  • No. of Electrical Operations: 1000
  • No. of Mechanical Operations: 1000
  • No. of Positions: 6Ways
  • Operating Force: 0.29N
  • Operating Force Min: 30gf
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
  • Pin Configuration: DIL
  • Pitch Spacing: 2.54mm
  • Row Pitch: 9.8mm
  • Switching Current DC Max: 25mA
  • Switching Current DC Min: 10µA
