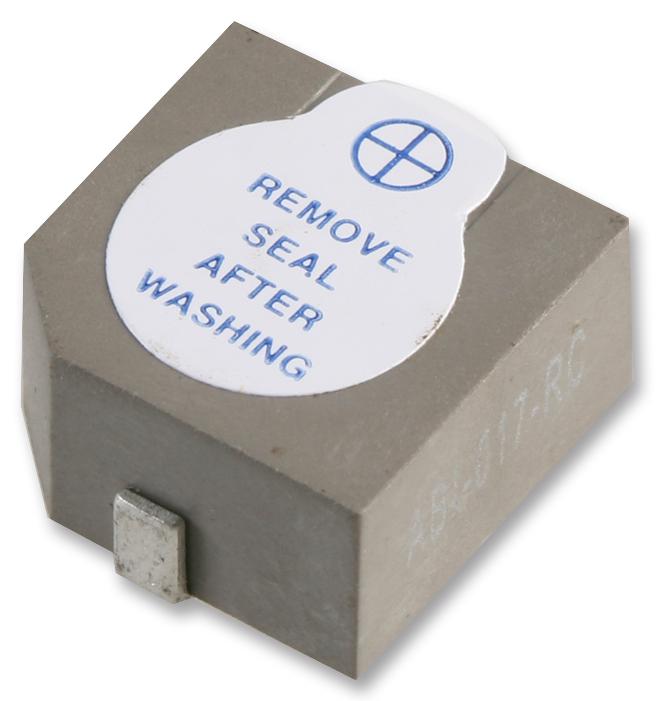

MULTICOMP PRO - ABT-425-RC - Transducer, Piezo, SMD, Buzzer, 30 mA, 80 dB
- Transducer Function: Buzzer
- Tones: -
- Supply Voltage Min: -
- Supply Voltage Max: -
- Operating Current Max: 30mA
- Sound Level SPL: 80dB
- Sound Level Distance: 10cm
- Resonant Frequency: 2.4kHz
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Coil Resistance: 15ohm
- Current Consumption: 30mA
- Current Rating: 30mA
- External Depth: 7.1mm
- External Height: 12.8mm
- External Length / Height: 12.8mm
- External Width: 12.8mm
- Height: 12.8mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Weight: 2g
