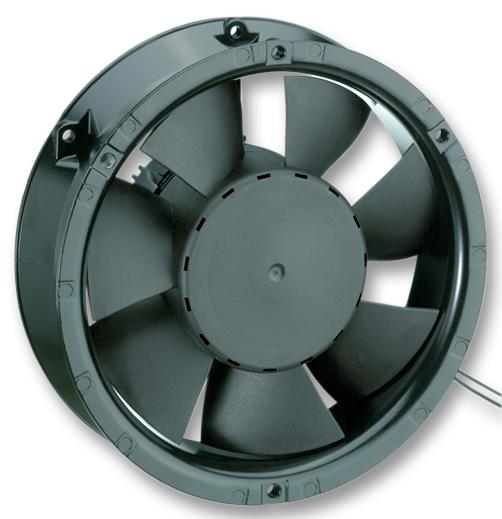

AC6200 Nm Fan, ACMAXX, 171mm, 115/230VAC ebm-papst

EBM-PAPSTSKU:AC6200 NM Bestelcode:1293477

Prijs:
Actie prijs€166,95

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (47 units)

Documenten en downloads

Omschrijving

  • Supply Voltage: 230V
  • Current Type: AC
  • Fan Frame Size: 172mm
  • External Depth: 51mm
  • Noise Rating: 50dBA
  • Flow Rate - Imperial: 206cu.ft/min
  • Flow Rate - Metric: 350m³/h
  • Bearing Type: Ball
  • Power Connection Type: 2 Lead Wires
  • Current Rating: -
  • Product Range: AC6200N Series
  • Power Rating: 12W
  • IP Rating: IP54
  • SVHC: No SVHC (15-Jan-2019)
  • Case Material: Metal
  • External Diameter: 171.5mm
  • Frame Dimensions: 171.5mm x 83.3mm
  • IP / NEMA Rating: IP54
  • Input Voltage Max: 265VAC
  • Input Voltage Min: 85VAC
  • Material: PA
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
  • Outer Diameter: 171.5mm
  • Power Consumption: 13.5W
  • Speed Range Max: 2850rpm
  • Weight: 900g
