Omschrijving
MURATA POWER SOLUTIONS - ACA-20RM-4-AC4-RL-C - Digital Panel Meter, LED, 3-1/2 Digits, AC Current, 0A to 50A
- No. of Digits / Alpha: 3-1/2
- Meter Function: AC Current
- Meter Range: 0A to 50A
- Digit Height: 9.4mm
- Panel Cutout Height: 21.29mm
- Panel Cutout Width: 33.93mm
- Supply Voltage Min: 170VAC
- Supply Voltage Max: 264VAC
- Operating Temperature Min: 0°C
- Operating Temperature Max: 60°C
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Accuracy: ± 3 Counts
- Accuracy %: 0.4%
- Character Height: 9.4mm
- Display Technology: LED
- External Depth: 12.19mm
- External Length / Height: 35.56mm
- External Width: 53.34mm
- Full Scale Reading: 50A
- LED Colour: Red
- Operating Temperature Range: 0°C to +60°C
- Supply Current: 50mA
- Supply Voltage: 220VAC
- Supply Voltage AC Max: 264VAC
- Supply Voltage AC Min: 170VAC
- Supply Voltage Range: 170V AC to 264V AC
Verwachte verzendkosten
Bekijk ook eens

MURATA POWER SOLUTIONS
DCA-20Pc-6-DC1-RL-C DPM, DC Ammeter, 20A, 5-40VDC, Power Murata Power Solutions
Actie prijs€83,67
Op voorraad, 19 producten
MURATA POWER SOLUTIONS
DMR20-1-ACV-R-C Voltmeter, Panel, LED, 85-264VAC Murata Power Solutions
Actie prijs€75,93
Op voorraad, 164 producten
MURATA POWER SOLUTIONS
DMS-20LCD-0-DCM-C VOLTMETER, DC, LCD MURATA POWER SOLUTIONS
Actie prijs€47,65
Op voorraad, 9 producten
TRUMETER

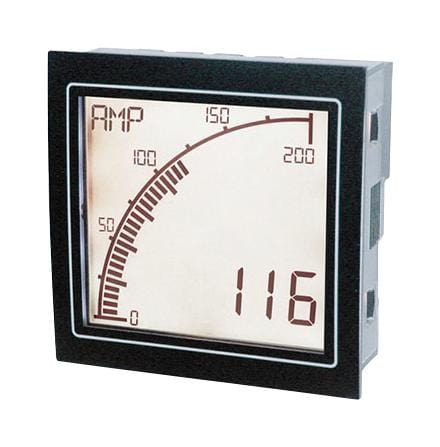

APM-Amp-APO Digital Ammeter, Pos Lcd-O/P, 0A TO 5A TRUMETER
Actie prijs€142,55
Nog maar 6 producten over
MURATA POWER SOLUTIONS
DMS-30PC-1-RS-C - Voltmeter, DMS-30PC Series, DC Voltage, -2V to +2V, 3.5 Digits, 4.75 V to 5.25 V, Red - MURATA POWER SOLUTIONS
Actie prijs€82,58
Op voorraad, 79 producten
MURATA POWER SOLUTIONS
DMR20-4/20S-G-C PROCESS MONITOR, LOOP POWERED, GREEN MURATA POWER SOLUTIONS
Actie prijs€95,22
Nog maar 2 producten over
TRUMETER

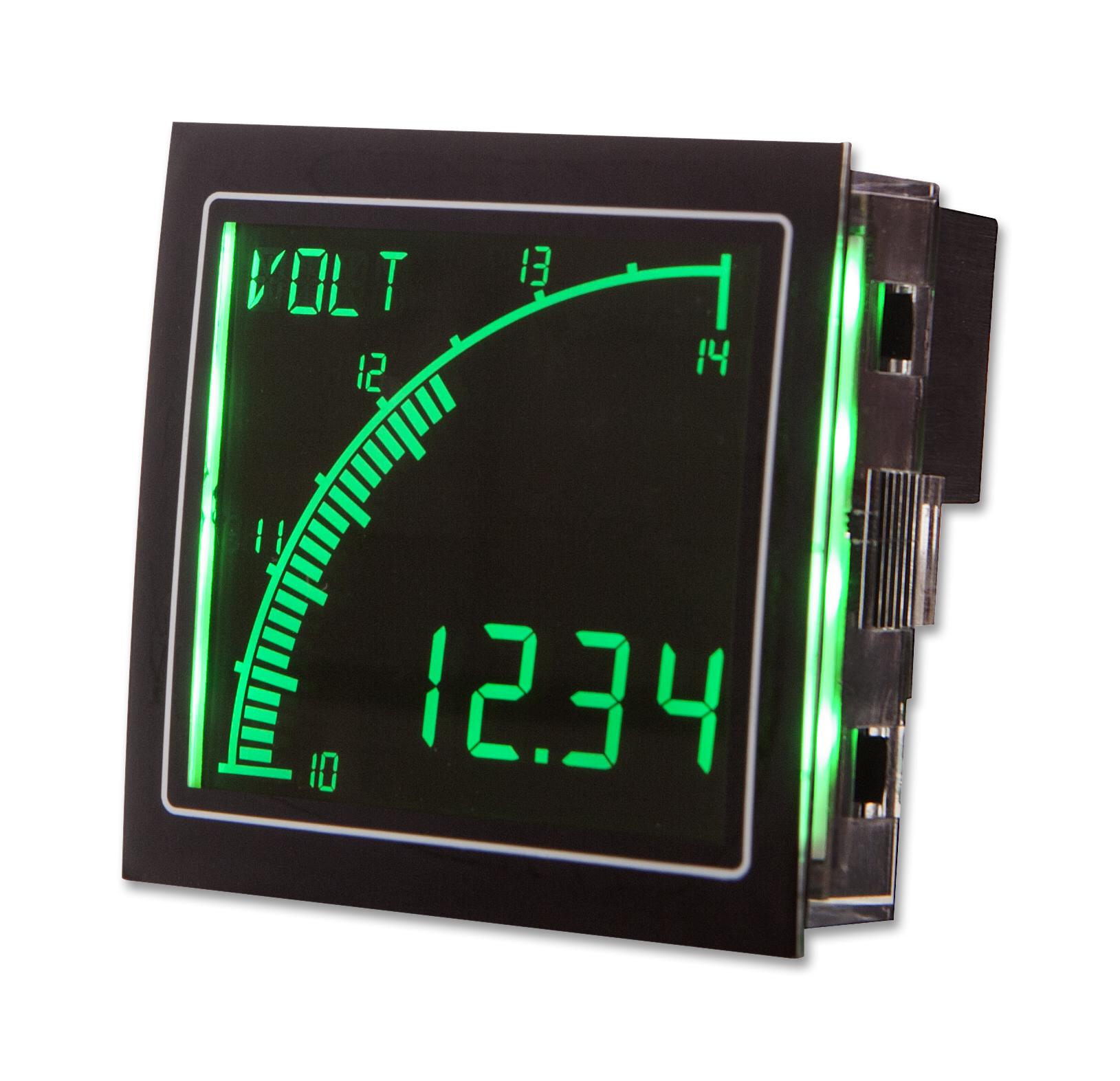

APM-Volt-ANO Digital Voltmeter, Neg Lcd-O/P, 0-600VDC TRUMETER
