Omschrijving

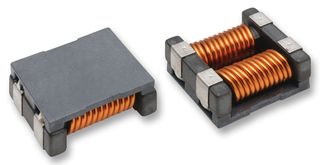

TDK - ACM1513-551-2PL-TLHF - Filter, Common Mode, ACM Series, 550 ohm, 10 A, 15mm x 13mm x 6mm
- Rated Current: 10A
- Inductance: -
- Product Range: ACM Series
- Impedance: 550ohm
- Common Mode Filter Case: 15mm x 13mm x 6mm
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Core Material: Ferrite
- DC Current Max: 10A
- DC Current Rating: 10A
- DC Resistance Max: 0.004ohm
- External Depth: 6mm
- External Length / Height: 15mm
- External Width: 13mm
- Height: 15mm
- Impedance @ 100MHz: 550ohm
- Inductor Type: Common Mode
- No. of Pins: 4Pins
- Operating Temperature Max: +85°C
- Operating Temperature Min: -25°C
- Voltage Rating: 50V
