Omschrijving

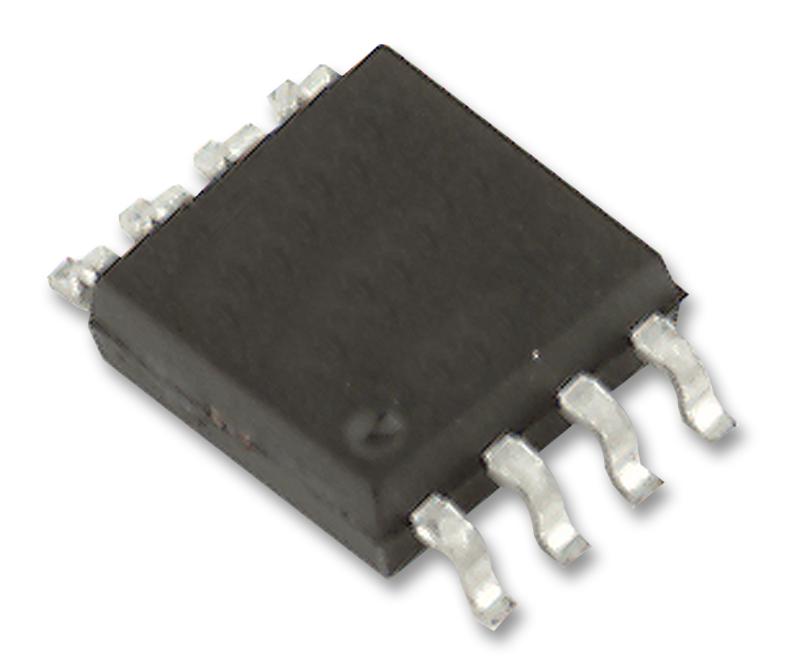

TEXAS INSTRUMENTS - ADS8325IDGKT - Analogue to Digital Converter, 16 bit, 100 kSPS, Differential, Single Ended, Serial, SPI, Single
- Resolution (Bits): 16bit
- Sampling Rate: 100kSPS
- Input Channel Type: Differential, Single Ended
- Data Interface: Serial, SPI
- Supply Voltage Type: Single
- Supply Voltage Min: 2.7V
- Supply Voltage Max: 5.5V
- ADC / DAC Case Style: VSSOP
- No. of Pins: 8Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: Single 16-Bit SAR ADCs
- Automotive Qualification Standard: -
- MSL: MSL 2 - 1 year
- SVHC: No SVHC (15-Jan-2019)
- Conversion Time: 666.7µs
- IC Case Style: SOP
- Linearity Error ADC / DAC +: 2LSB
- Linearity Error ADC / DAC -: 2LSB
- No. of Bits: 16bit
- No. of Channels: 1Channels
- Operating Temperature Range: -40°C to +85°C
- Supply Current: 900µA
- Supply Voltage Range: 2.7V to 5.5V
- Supply Voltage Range - Analogue: 2.7V to 3.6V, 4.5V to 5.5V
- Supply Voltage Range - Digital: 2.7V to 3.6V, 4.5V to 5.5V
- Termination Type: Surface Mount Device
