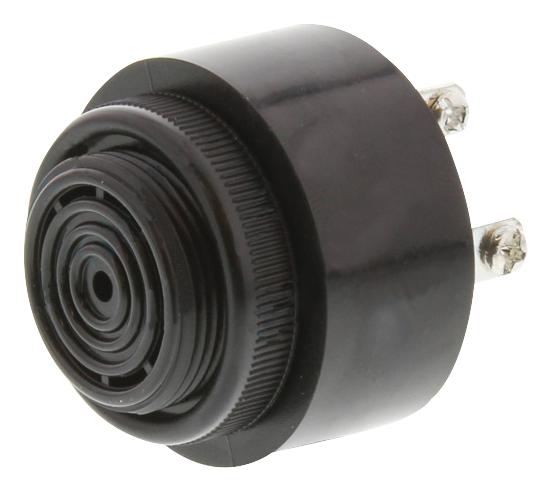

MOFLASH SIGNALLING - AE20M-24FA - Buzzer, Piezo, Continuous, Pulse, 90dB, 2.9kHz, 24VDC, 24VAC, 10mA, IP55, 43mm Ext. Depth
- Supply Voltage V AC: 24V
- Supply Voltage V DC: 24VDC
- Tones: Continuous, Pulse
- Sound Level SPL: 90dB
- IP / NEMA Rating: IP55
- Product Range: AE20M Series
- Resonant Frequency: 2.9kHz
- Current Consumption: 10mA
- External Depth: 43mm
- Operating Temperature Min: -20°C
- Operating Temperature Max: 60°C
- SVHC: No SVHC (15-Jun-2015)
- External Height: 40.7mm
- Frequency Response Max: 2900Hz
- Sound Level Distance: 1m
