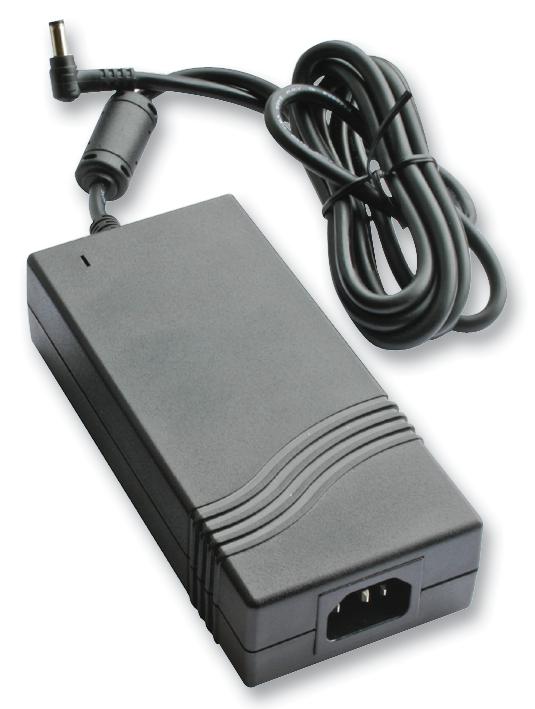

XP POWER - AEB70US48 - AC/DC Power Supply, ITE, 1 Output, 72 W, 48 V, 1.5 A
- No. of Outputs: 1 Output
- Output Power Max: 72W
- Output Voltage - Output 1: 48V
- Output Current - Output 1: 1.5A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Connector: Barrel Plug Center Positive 2.5mm x 5.5mm x 12mm
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Power Supply Output Type: Fixed
- Input Voltage VAC: 90V AC to 264V AC
- Product Range: -
- Plug Type: Mains Plug Sold Separately
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- Efficiency: 85%
- External Depth: 58mm
- External Length / Height: 30mm
- External Width: 132mm
- Height: 30mm
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- Length: 58mm
- No. of Outputs: 1Outputs
- Operating Temperature Max: 60°C
- Operating Temperature Min: 0°C
- Output Current Max: 1.5A
- Power Rating: 72W
- Power Supply Type: Switch Mode
- Supply Voltage: 264V
- Supply Voltage Max: 264V
- Supply Voltage Min: 90V
- Width: 132mm
