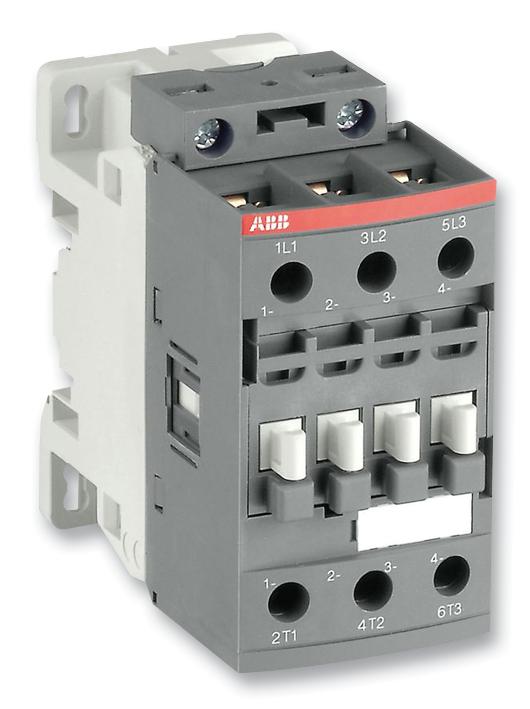

ABB - AF16Z-30-01-21 - Contactor, 18 A, DIN Rail, 60 V, 3NO / 1NC, 3 Pole, 7.5 kW
- Load Current Inductive: 18A
- Relay Mounting: DIN Rail
- Operating Voltage: 60V
- Contact Configuration: 3NO / 1NC
- No. of Poles: 3 Pole
- Switching Power AC3: 7.5kW
- Switching Current AC1: 30A
- Coil Voltage VAC Nom: 60V
- Coil Voltage VDC Nom: 60V
- Switching Power AC1: -
- Load Current Resistive: 30A
- Switching Current AC3: 18A
- Product Range: AF16Z Series
- Coil Type: AC / DC
- Contact Current AC Max: 18A
- External Depth: 77mm
- External Length / Height: 80mm
- External Width: 46mm
- Nom Operating Power: 7.5kW
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Relay Type: Contactor
- Termination Type: Screw
- Type: 10 hp
