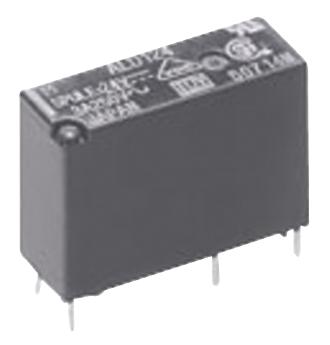

ALDP124 Relay, SPST-NO, 277VAC, 30Vdc, 5A Panasonic

PANASONICSKU:ALDP124 Bestelcode:2095639

Prijs:
Actie prijs€3,45

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (891 units)

Documenten en downloads

Omschrijving

PANASONIC - ALDP124 - General Purpose Relay, LD-P(ALDP) Series, Power, Non Latching, SPST-NO, 24 VDC, 5 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 24VDC
  • Contact Current: 5A
  • Product Range: LD-P(ALDP) Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 277VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Nickel
  • Coil Resistance: 2.88kohm
  • SVHC: No SVHC (07-Jul-2017)
  • Coil Current: 8.3mA
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 5A
  • Contact Voltage AC Nom: 277V
  • Contact Voltage DC Nom: 30V
  • External Depth: 20.5mm
  • External Height: 15.7mm
  • External Width: 7.2mm
  • Nom Operating Power: 200mW
  • Relay Type: Power
