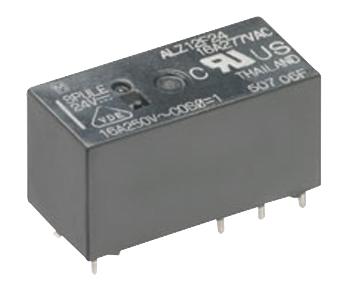

ALZ52B12 Relay, SPST-NO, 277VAC, 30Vdc, 16A Panasonic

PANASONICSKU:ALZ52B12 Bestelcode:2095648

Prijs:
Actie prijs€4,01

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (112 units)

Documenten en downloads

Omschrijving

PANASONIC - ALZ52B12 - General Purpose Relay, LZ(ALZ) Series, Power, Non Latching, SPST-NO, 12 VDC, 16 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 12VDC
  • Contact Current: 16A
  • Product Range: LZ(ALZ) Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 277VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 360ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Coil Current: 33.3mA
  • Coil Voltage VDC Nom: 12V
  • Contact Current Max: 16A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • External Depth: 28.8mm
  • External Height: 15.7mm
  • External Width: 12.5mm
  • Nom Operating Power: 400mW
  • Relay Type: Power
